Pneumatic Cylinders
ISO, compact, mini, guided, slide, rotary, rodless, gripper, clamp and stopper cylinders, from ø6 to ø200 mm bore. Every part number is built from Mindman's order charts and carries its list price.
ø6 to ø200 mm boresFrom MCFA micro cylinders to MCQA ø200.
Any stroke in rangePick a band, type your exact stroke.
List prices onlineEvery variant priced from Mindman's book.
Matching accessoriesMounts, sensors and repair kits per series.
Shop by cylinder type
Pick a family to see every series, bore and accessory in it.
ISO Cylinders
MCQV3, MCQI3, MCQA
Shop ISO Cylinders →
Compact Cylinders
MCJA, MCJQ, MCKJQ, MCJU · ø12 – ø100
Shop Compact Cylinders →
Mini Cylinders
MCMI, MCMA, MCMB, MCMJ · ø8 – ø40
Shop Mini Cylinders →
Micro & Round
MCFA, MCFB, MCCG, MCCN
Shop Micro & Round →

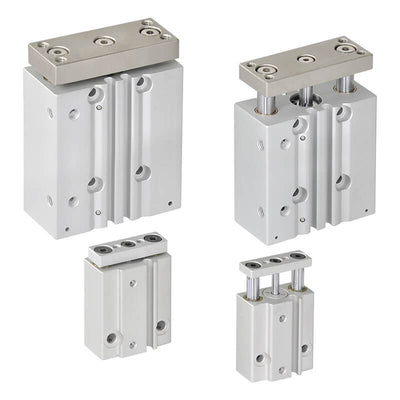

Guided & Dual-Rod
MCGA, MCGB, MCGS, MGTB, MCDA, MCDJ
Shop Guided & Dual-Rod →

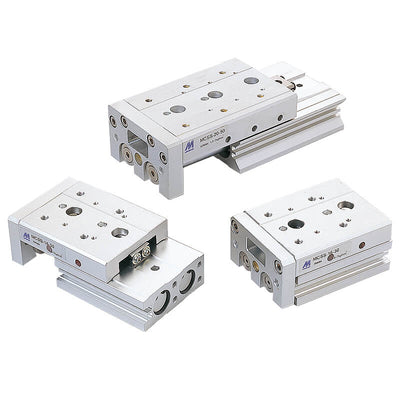

Slide Tables
MCSS, MCSQ, MCSF, MCSH
Shop Slide Tables →

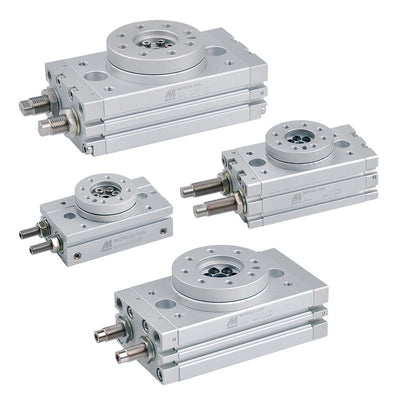

Rotary Actuators
MCRA, MCRB, MCRJ, MCRQ2, MRTH
Shop Rotary Actuators →

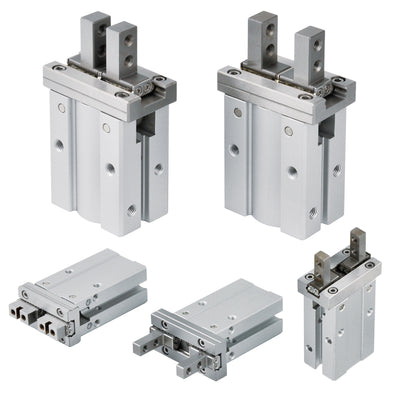

Grippers
MCHA, MCHB, MCHC, MCHD, MCHS, MCHU
Shop Grippers →

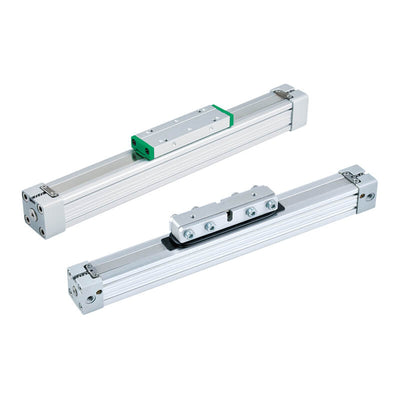

Rodless Cylinders
MCRPL2, MCRPLF2, MCRPM, MCRPMD
Shop Rodless Cylinders →

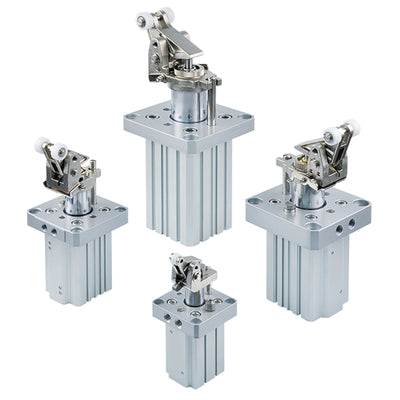

Clamp & Stopper
MTAS, MCKA, MCKC, MSBD, MSBE
Shop Clamp & Stopper →
How to order: reading a part number
Many series accept any stroke inside their range. Choose the stroke band from the dropdown, then type your exact stroke in the box on the product page. The band in brackets is replaced by your stroke on the order.
MCQV3Series
11Double acting, male rod
40Bore (mm)
(51-100)Stroke band
MWith magnet
Example: MCQV3-11-40-(51-100)M with a 75 mm stroke orders as MCQV3-11-40-75M.
Popular series
Prices shown are the lowest list price in each series.
Mindman Pneumatic Cylinder

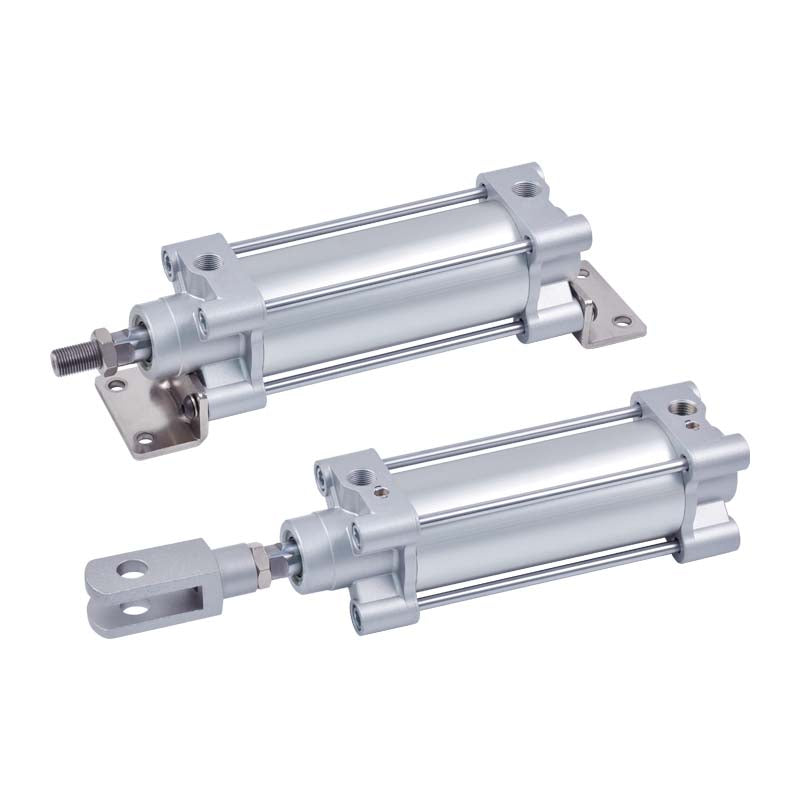

MCQV3-11-32 ISO 15552 Pneumatic Cylinder, ø32 mm Bore, Double Acting, Male Rod Thread
From $59.93
View sizes
Mindman Pneumatic Cylinder

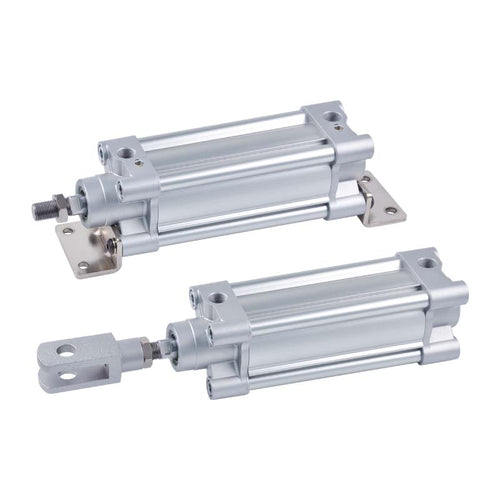

MCQI3-11-32 ISO 15552 Profile Cylinder, ø32 mm Bore, Double Acting, Male Rod Thread
From $67.36
View sizes
Mindman Pneumatic Cylinder

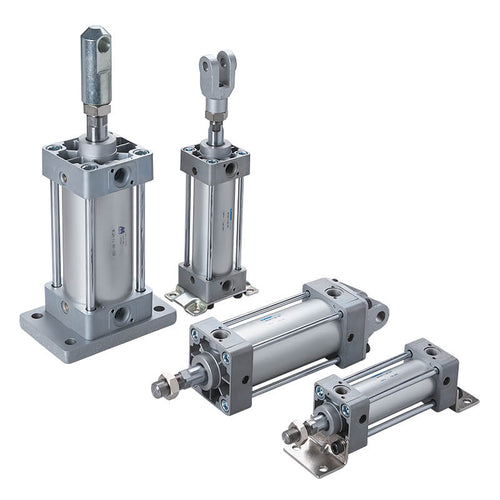

MCQA-11-40 Standard Pneumatic Cylinder, ø40 mm Bore, Double Acting, Male Rod Thread
From $59.06
View sizes
Mindman Pneumatic Cylinder

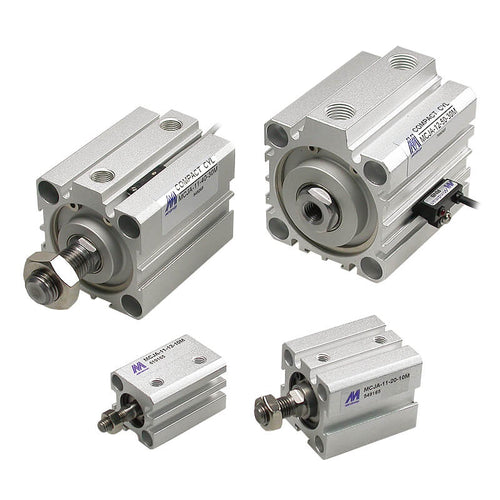

MCJA-11-16 Compact Cylinder, ø16 mm Bore, Double Acting, Male Rod Thread
From $23.88
View sizes
Mindman Pneumatic Cylinder

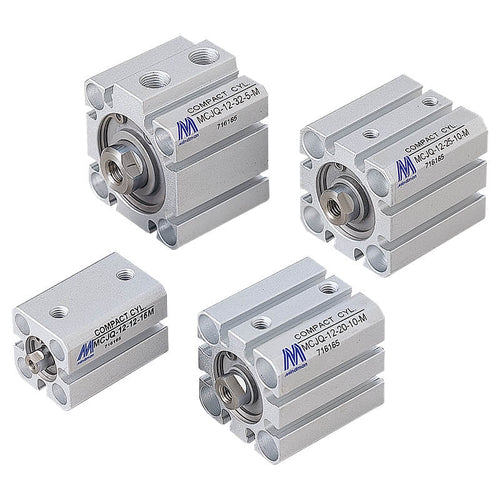

MCJQ-11-12 Compact Cylinder, ø12 mm Bore, Double Acting, Male Rod Thread
From $27.60
View sizes
Mindman Pneumatic Cylinder

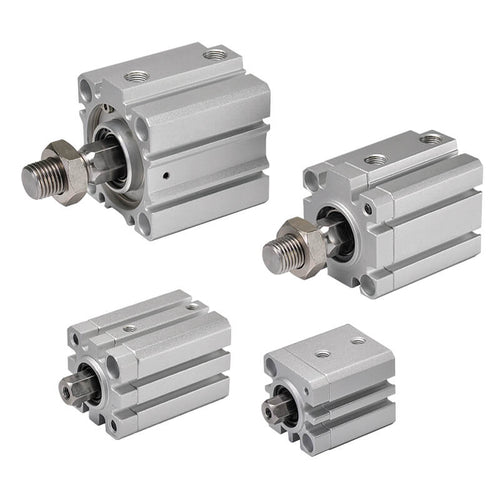

MCKJQ-11-12 Non-Rotating Compact Cylinder, ø12 mm Bore, Double Acting, Male Rod Thread
From $51.88
View sizes
Mindman Pneumatic Cylinder

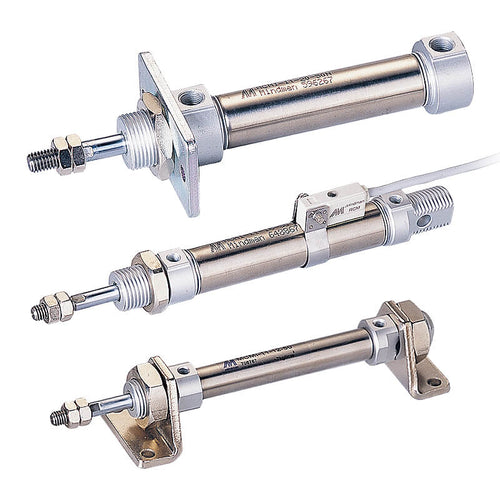

MCMI-11-8 ISO 6432 Mini Cylinder, ø8 mm Bore, Double Acting, Male Rod Thread
From $27.36
View sizes
Mindman Pneumatic Cylinder

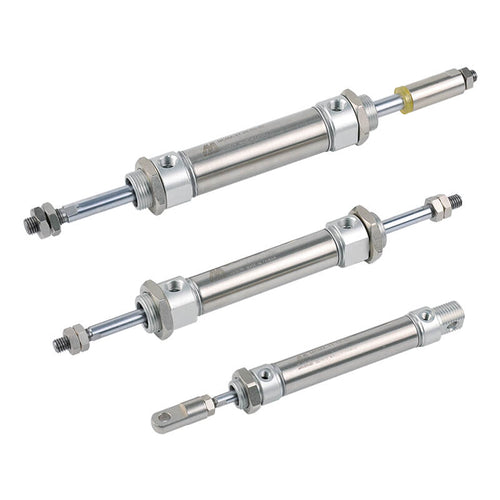

MCMA-11-16 Mini Round Cylinder, ø16 mm Bore, Double Acting, Male Rod Thread
From $40.39
View sizes
Mindman Pneumatic Cylinder

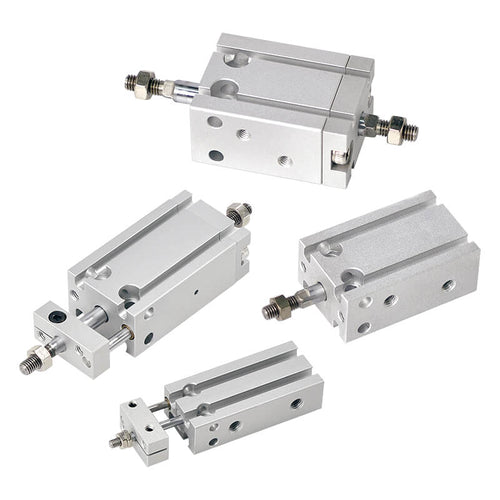

MCFA-11-16 Arbitrary-Mount Cylinder, ø16 mm Bore, Double Acting, Male Rod Thread
From $23.25
View sizes
Mindman Pneumatic Cylinder

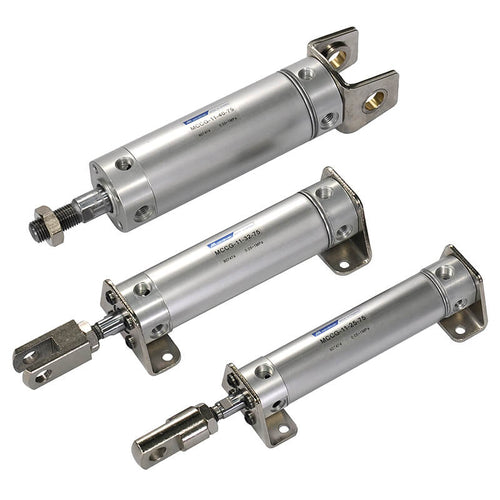

MCCG-11-20 Round Cylinder, ø20 mm Bore, Double Acting, Male Rod Thread
From $63.34
View sizes
Mindman Pneumatic Cylinder

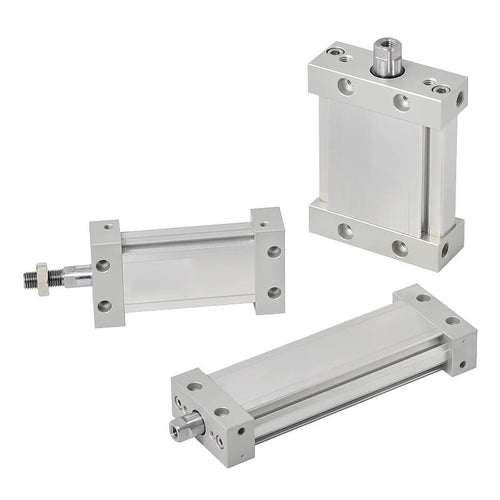

MCJU-11-25 Plate Cylinder, Non-Rotating Rod (Magnet Standard), ø25 mm Bore, Double Acting, Male Rod Thread
From $94.17
View sizes
Compare bore ranges
| Series | Type | Bores (mm) | From |
|---|---|---|---|
| MCQV3 | ISO 15552 tie-rod | ø32 – ø100 | $59.93 |
| MCQI3 | ISO 15552 profile | ø32 – ø100 | $67.36 |
| MCQA | Standard tie-rod | ø40 – ø200 | $59.06 |
| MCJA | Compact | ø12 – ø100 | $23.88 |
| MCJQ | Compact | ø12 – ø100 | $27.60 |
| MCKJQ | Compact, non-rotating | ø12 – ø40 | $51.88 |
| MCMI | ISO 6432 mini | ø8 – ø40 | $27.36 |
| MCMA | Mini round | ø16 – ø40 | $40.39 |
| MCFA | Arbitrary-mount | ø6 – ø32 | $23.25 |
| MCCG | Round | ø20 – ø100 | $63.34 |
| MCJU | Plate | ø25 – ø63 | $94.17 |

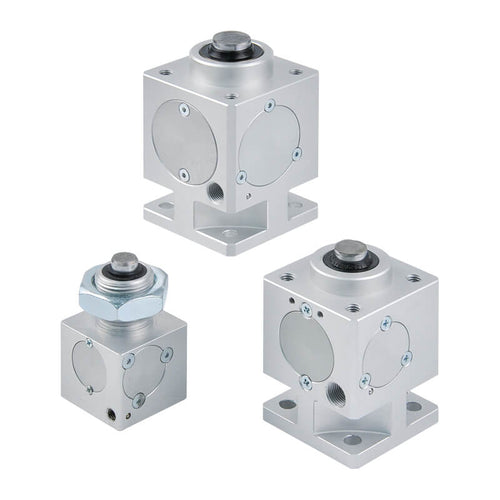

| MCB | Rod lock | ø20 – ø125 | $425.44 |
Complete the cylinder
Each cylinder page lists its own mounts, rod ends, sensors, repair kits (PS-) and component parts (CP-) in the related products slider.
Not sure which bore or stroke you need?
Send us the force, stroke and mounting and we'll match a Mindman part number.
