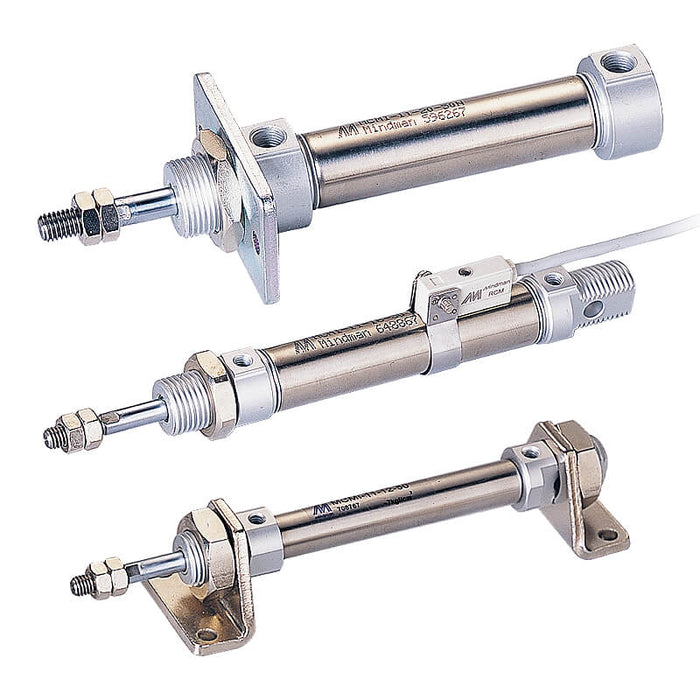

Mindman MCMI series

Mindman MCMI-11-8 ISO 6432 Mini Cylinder, ø8 mm Bore, Double Acting, Male Rod Thread

SKU MCMI-11-8-(1-10)
by Mindman
$27.36 - $32.06
$27.36
$27.36 - $32.06
$27.36
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCMI series iso 6432 mini cylinder, ø8 mm bore, double acting, male rod thread.

Stroke: available from 1 to 100 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCMI-11-8-[stroke][-A]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 8, 10, 12, 16, 20, 25, 32, 40
Port size M5×0.8, G1/8, G1/4
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.06~0.23 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricator Not required
Available speed range 50~750 mm/sec
Max. allowable kinetic energy Cushion pad 0.02~1.2J, Adjustable cushion 0.4~2.35J
Sensor switch RDC, RQC, RDT, RQT, RCM
Sensor switch band R*C: BKC-1 (Not for R*CV angle cable); R*T: BKT-1; RCM: BM8~BM40
Series Mindman MCMI
