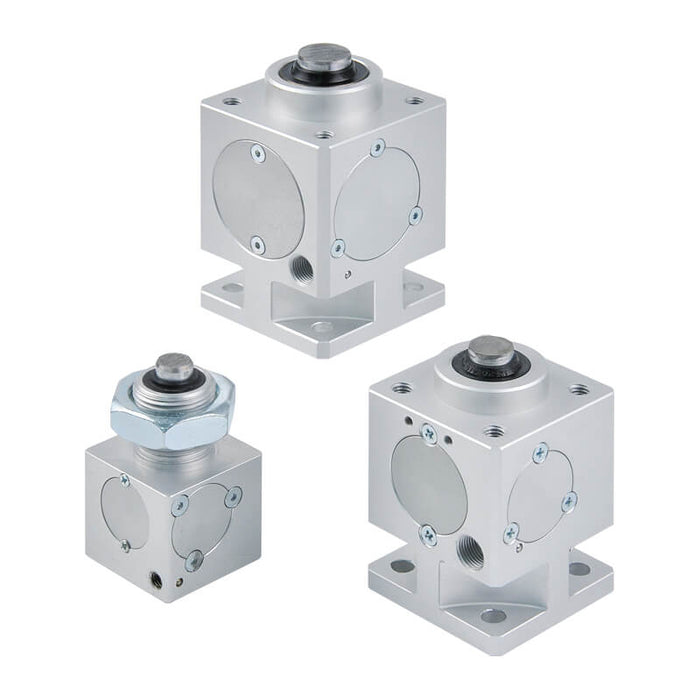

Mindman MCB series rod locking unit, ø20 mm bore.

Mindman ordering code: MCB-20.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 20, 25, 32, 40, 50, 63, 80, 100, 125
Rod diameter (mm) 8, 10, 12, 16, 20, 20, 25, 25, 32
Medium Air
Operating pressure range 0.3~0.6 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋80℃ (No freezing)
Min. working pressure 0.3 MPa
Locking mode Secure locking of piston rod in any position
Lock retention forces 490~12,040 N
Series Mindman MCB
