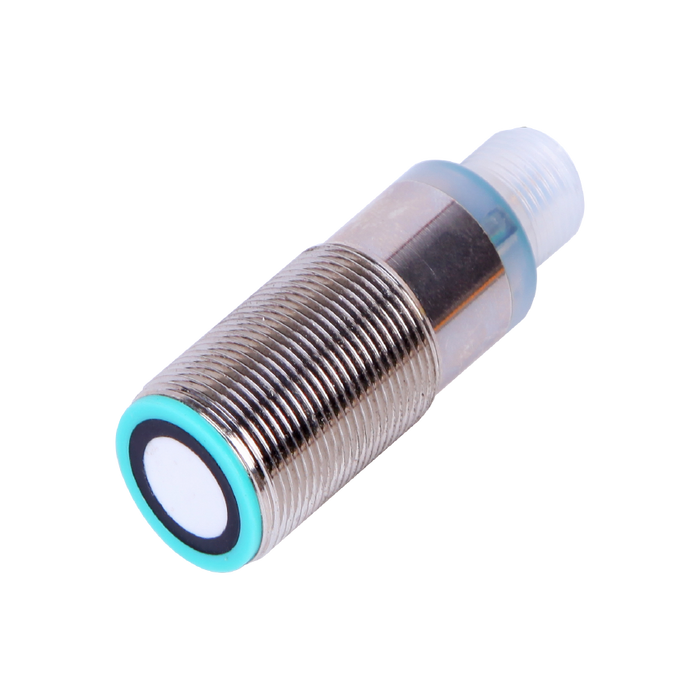

Ultrasonic Sensor, G18-Series, Diffused, Operating range 40…500 mm, Resolution 0.17 mm, NPN, NC/NO, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

UKS500-G18-VN7L-Q12

SKU UKS500-G18-VN7L-Q12
by ELCO Industrial Automation

Ultrasonic Sensor, G18-Series, Diffused, Operating range 40…500 mm, Resolution 0.17 mm, NPN, NC/NO, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

$258.92 - $258.92
$258.92
$258.92 - $258.92
$258.92
Availability:
In stock

Ultrasonic Sensor, G18-Series, Diffused, Operating range 40…500 mm, Resolution 0.17 mm, NPN, NC/NO, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

Specifications

Switching frequency 20 Hz
Output status NO / NC
Sensing range 40 ... 500 mm
External dimensions M18 x 1
Product size M18 x 50.7 mm
Output type NPN
Load current ≤ 200 mA
Supply voltage 15 ... 30 V DC
Ambient temperature -25 … +70 ℃
IP rating IP65
Housing material Nickel-plated brass

No additional information at this time.

Downloads

CE CE_SU_Ultrasonic-Sensors_V1.0_EN.pdf
Datasheet ELCO_超声波-G18_DataSheet_CN.pdf
Datasheet DS_UKS_M18_V1.0_EN.pdf
3D Drawing CAD_SU_UKS-G18-Q12_V1.0.stp
Manual UM_SU_UKS500-G18-DIO_V1.0_EN&CN.pdf
