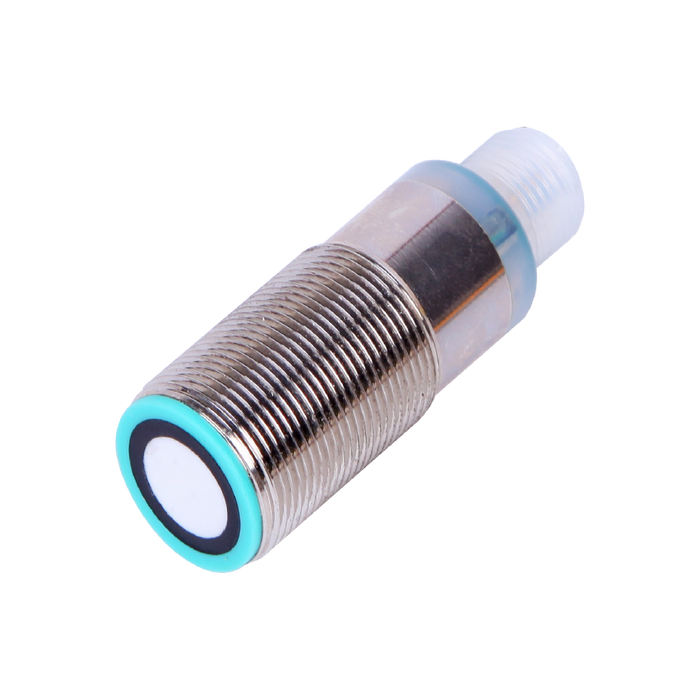

Ultrasonic Sensor, G18-Series, Diffused, Operating range 40…500 mm, Resolution 0.17 mm, Analog 5...10 V, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

UKS500-G18-LU17L-Q12

SKU UKS500-G18-LU17L-Q12
by ELCO Industrial Automation

Ultrasonic Sensor, G18-Series, Diffused, Operating range 40…500 mm, Resolution 0.17 mm, Analog 5...10 V, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

$276.98 - $276.98
$276.98
$276.98 - $276.98
$276.98
Availability:
In stock

Ultrasonic Sensor, G18-Series, Diffused, Operating range 40…500 mm, Resolution 0.17 mm, Analog 5...10 V, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole

Specifications

Switching frequency 20 Hz
Ambient temperature -25 … +70 ℃
Supply voltage 15 ... 30 V DC
Housing material Nickel-plated brass
Product size M18 x 50.7 mm
External dimensions M18 x 1
Output status 0 ... 5 V
Connection M12, 4-pin
Sensing range 40 ... 500 mm
IP rating IP65
Output type Analog

No additional information at this time.

Downloads

CE CE_SU_Ultrasonic-Sensors_V1.0_EN.pdf
Datasheet ELCO_超声波-G18_DataSheet_CN.pdf
Datasheet DS_UKS_M18_V1.0_EN.pdf
3D Drawing CAD_SU_UKS-G18-Q12_V1.0.stp
Manual UM_SU_UKS500-G18-ANALOG_V1.0_EN&CN.pdf
