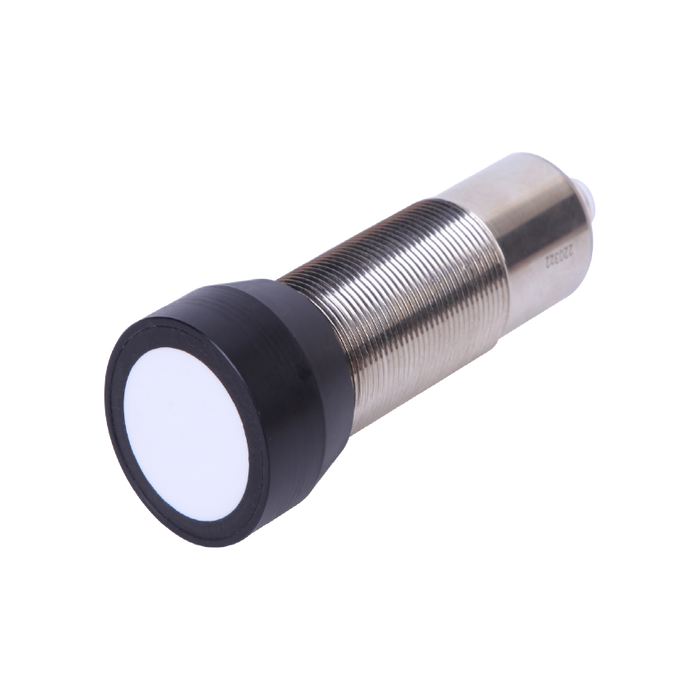

Ultrasonic Sensor, G30-Series, Diffused, Operating range 200…4000 mm, Resolution 1 mm, PNP, NC/NO, 15…30 V DC, -25…70 °C, Switching frequency 3 Hz, IP67, M12 4-pole

Specifications

Supply voltage 15 ... 30 V DC
External dimensions M30 x 1.5
Output type PNP
IP rating IP65
Product size M30 x 117 mm
Output status NO / NC
Ambient temperature -25 … +70 ℃
Load current ≤ 200 mA
Housing material Nickel-plated brass
Connection M12, 4-pin
Switching frequency 3 Hz
Sensing range 200

No additional information at this time.

Downloads

CE CE_SU_Ultrasonic-Sensors_V1.0_EN.pdf
Datasheet ELCO_超声波-G30_DataSheet_CN.pdf
Datasheet ELCO_Ultrasonic Sensors-G30_DataSheet_EN.pdf
3D Drawing CAD_SU_UKS4000-G30-Q12_V1.0.stp
Manual UM_SU_UKS4000-G30-DIO_V1.0_EN&CN.pdf
