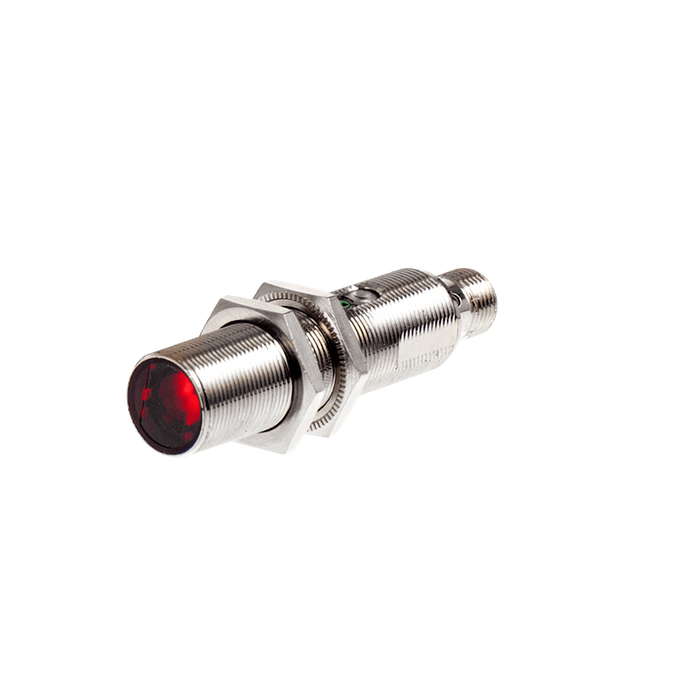

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 400 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OM18-K400VP6Q

SKU OM18-K400VP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 400 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$45.39 - $45.39
$45.39
$45.39 - $45.39
$45.39
Availability:
In stock

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 400 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Output type PNP
Connection type M12, 4-pin
Output status L.O + D.O
Switching frequency 100 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Anti-ambient light ≤ 5000 lux
IP rating IP67
Housing material Nickel plated brass
Connection Connector
Ambient temperature -25 … +65 ℃

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-AP-Q12_V1.0.stp
Manual UM_SP_OM18-K600_V1.0_EN&CN.pdf
