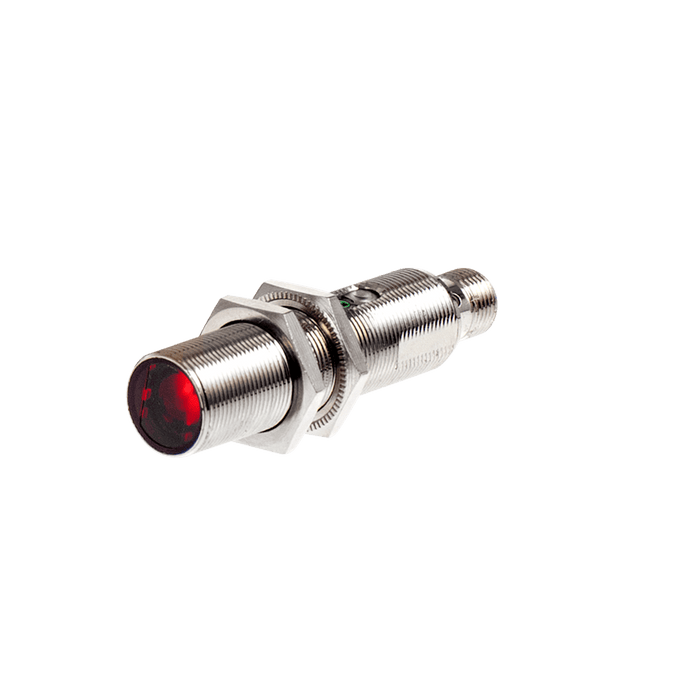

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Connection Connector
Detection method Diffused
Sensing range 200 mm
Light source Infrared LED
Spot size 50 mm @ 200 mm
Output type PNP
Switching frequency 100 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
IP rating IP67
Housing material Nickel plated brass

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-AP-Q12_V1.0.stp
Manual UM_SP_OM18-K200_V1.0_EN&CN.pdf
