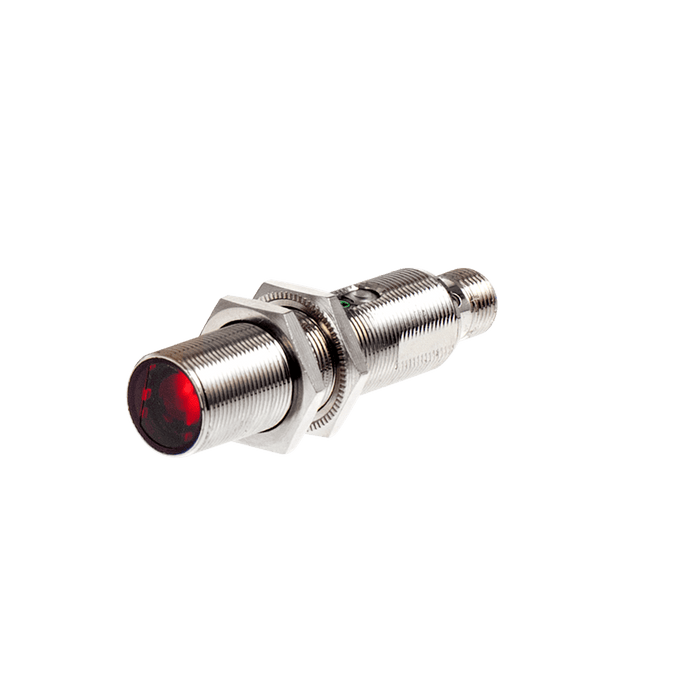

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 200 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OM18-K200VN6Q

SKU OM18-K200VN6Q
by ELCO Industrial Automation

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 200 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$45.39 - $45.39
$45.39
$45.39 - $45.39
$45.39
Availability:
In stock

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 200 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Detection method Diffused
Sensing range 200 mm
Light source Infrared LED
Spot size 50 mm @ 200 mm
Output type NPN
Output status L.O + D.O
Switching frequency 100 Hz
Supply voltage 10 ... 30 V DC
Ambient temperature -25 … +65 ℃
Anti-ambient light ≤ 5000 lux

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-AP-Q12_V1.0.stp
Manual UM_SP_OM18-K200_V1.0_EN&CN.pdf
