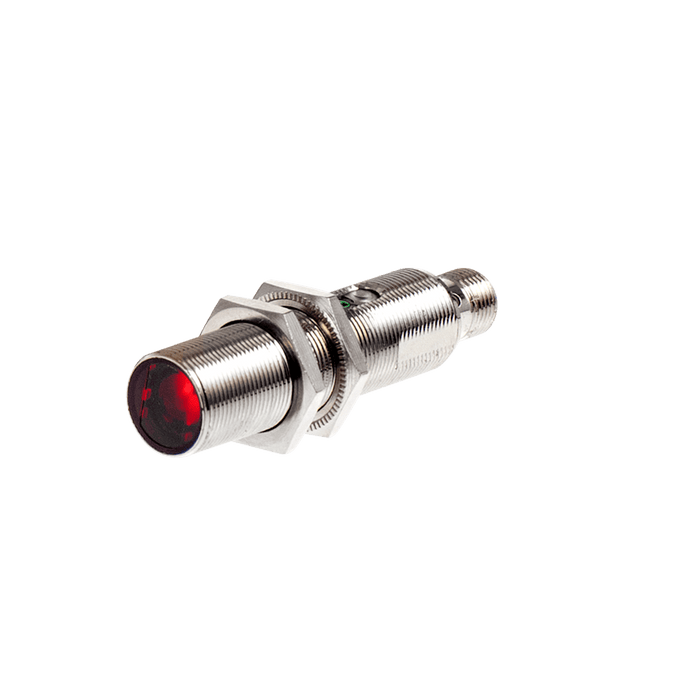

Photoelectric Sensor, OM18-Series, Opposed, Receiver, Infrared beam, Operating range 10 m, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OM18-EVP6Q

SKU OM18-EVP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OM18-Series, Opposed, Receiver, Infrared beam, Operating range 10 m, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$34.74 - $34.74
$34.74
$34.74 - $34.74
$34.74
Availability:
In stock

Photoelectric Sensor, OM18-Series, Opposed, Receiver, Infrared beam, Operating range 10 m, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Output type PNP
Output status L.O + D.O
Detection method Opposed (Receiver)
Sensing range 10 m
Switching frequency 100 Hz
Supply voltage 10 ... 30 V DC
Housing material Nickel plated brass
Connection Connector
IP rating IP67
Anti-ambient light ≤ 5000 lux

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-AP-Q12_V1.0.stp
Manual UM_SP_OM18-SE_V1.0_EN&CN.pdf
