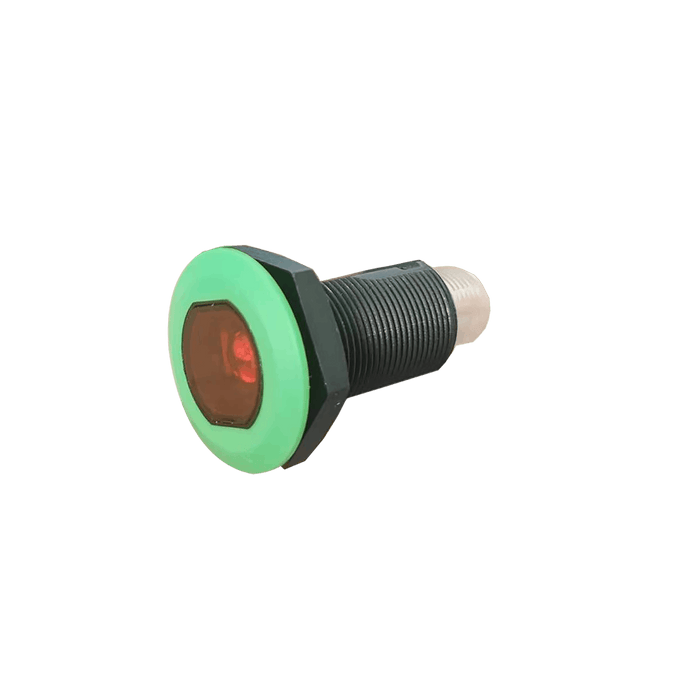

Photoelectric Sensor, OG18-Series, Opposed, Receiver, Infrared beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

OG18-ECN6Q

SKU OG18-ECN6Q
by ELCO Industrial Automation

Photoelectric Sensor, OG18-Series, Opposed, Receiver, Infrared beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

$27.79 - $27.79
$27.79
$27.79 - $27.79
$27.79
Availability:
In stock

Photoelectric Sensor, OG18-Series, Opposed, Receiver, Infrared beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Detection method Opposed (Receiver)
Sensing range 30 m
Output type NPN
Output status L.O / D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Ambient temperature -25 … +55 ℃
IP rating IP67
Anti-ambient light ≤ 5000 lux

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-AP-Q12_V1.0.stp
Manual UM_SP_OG18-SE_V1.0_EN&CN.pdf
