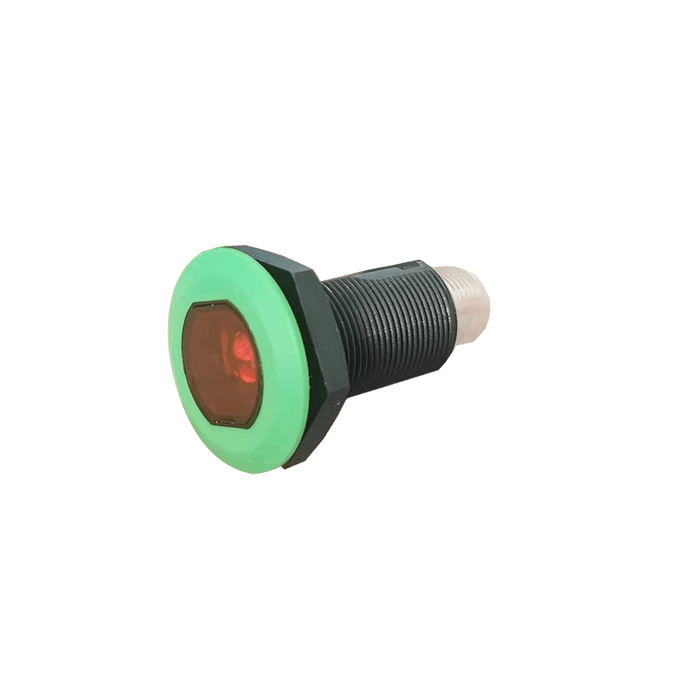

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 50 mm, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Housing material PBT + ABS
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Light source Red LED
Spot size 5 mm @ 50 mm
Output type NPN
Output status L.O + D.O
Detection method BGS Diffused
Sensing range 5 … 50 mm
IP rating IP67
Special characteristics Fixed

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-Q12_V1.0.stp
Manual UM_SP_OG18-AK100_V1.0_EN&CN.pdf
