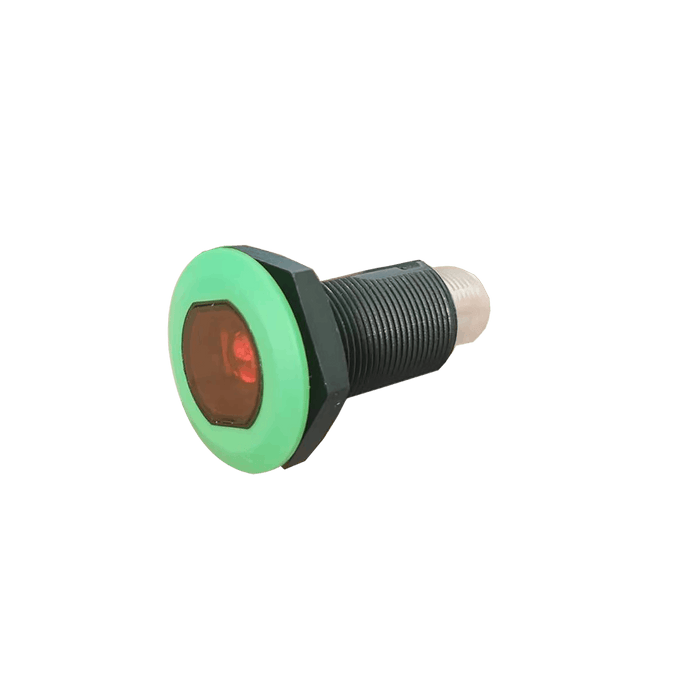

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

Specifications

Output type PNP
Detection method BGS Diffused
Sensing range 10 … 200 mm
Light source Red LED
Spot size 12 mm @ 200 mm
Connection type M12, 4-pin
IP rating IP67
Output status L.O + D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Ambient temperature -25 … +55 ℃

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-Q12_V1.0.stp
Manual UM_SP_OG18-AK200_V1.0_EN&CN.pdf
