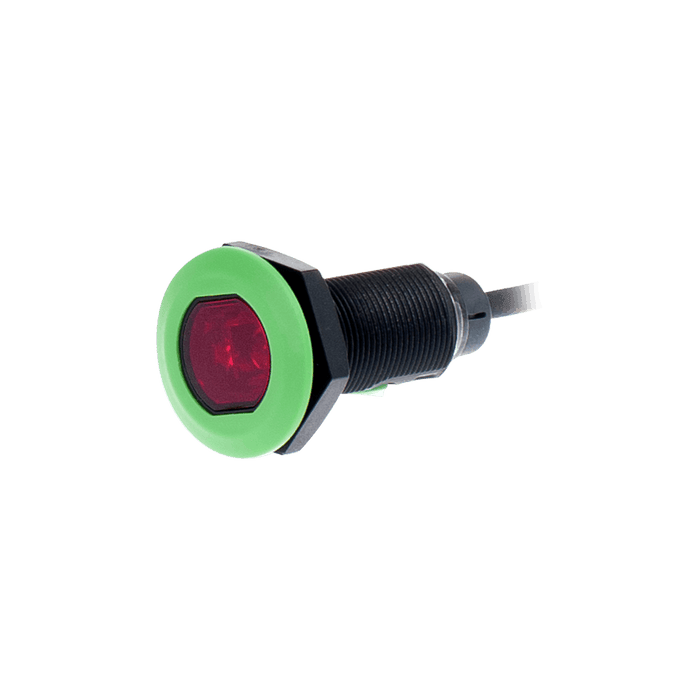

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 200 mm, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

OG18-AK200VN6

SKU OG18-AK200VN6
by ELCO Industrial Automation

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 200 mm, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

$50.63 - $50.63
$50.63
$50.63 - $50.63
$50.63
Availability:
In stock

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 200 mm, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, TPU
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Light source Red LED
Detection method BGS Diffused
Sensing range 10 … 200 mm
Spot size 12 mm @ 200 mm
Output type NPN
Output status L.O + D.O
IP rating IP67
Special characteristics Fixed distance BGS
Connection C

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18_V1.0.stp
Manual UM_SP_OG18-AK200_V1.0_EN&CN.pdf
