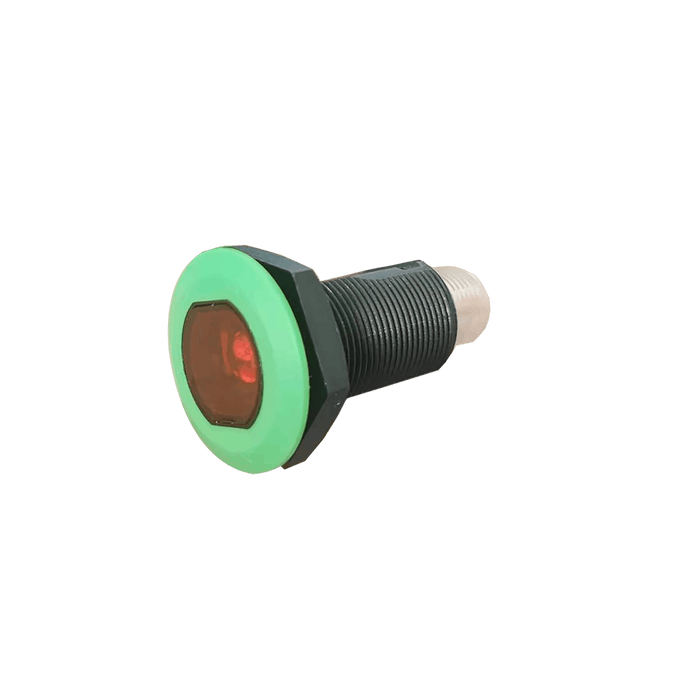

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 150 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Detection method BGS Diffused
Sensing range 10 … 150 mm
Spot size 9 mm @ 150 mm
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Light source Red LED
Output type PNP
Output status L.O + D.O
IP rating IP67
Housing material PBT + ABS
Special characteristics Fix

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-Q12_V1.0.stp
Manual UM_SP_OG18-AK200_V1.0_EN&CN.pdf
