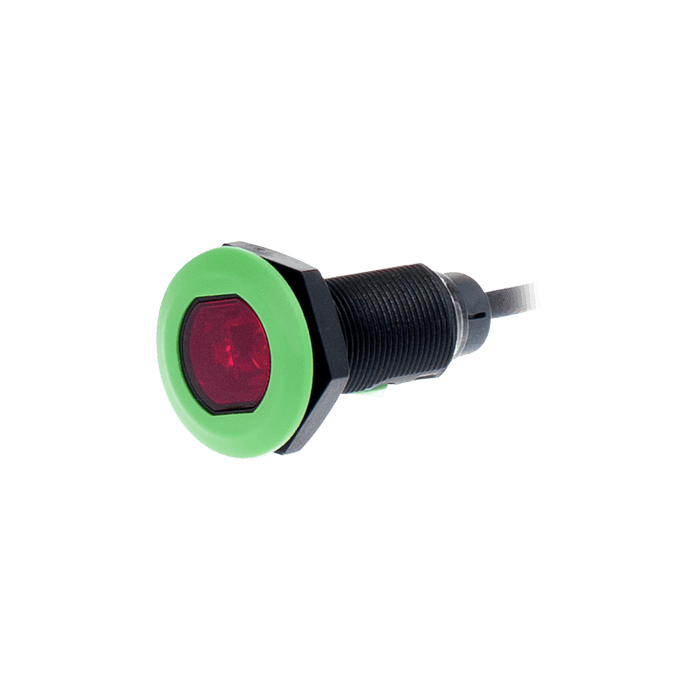

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 100 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

OG18-AK100VP6

SKU OG18-AK100VP6
by ELCO Industrial Automation

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 100 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

$43.54 - $43.54
$43.54
$43.54 - $43.54
$43.54
Availability:
In stock

Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 100 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, TPU
Detection method BGS Diffused
Sensing range 8 … 100 mm
Light source Red LED
Spot size 7 mm @ 100 mm
Ambient temperature -25 … +55 ℃
Output type PNP
Output status L.O + D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
IP rating IP67
Housing material PBT + AB

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18_V1.0.stp
Manual UM_SP_OG18-AK100_V1.0_EN&CN.pdf
