Mindman RDT series

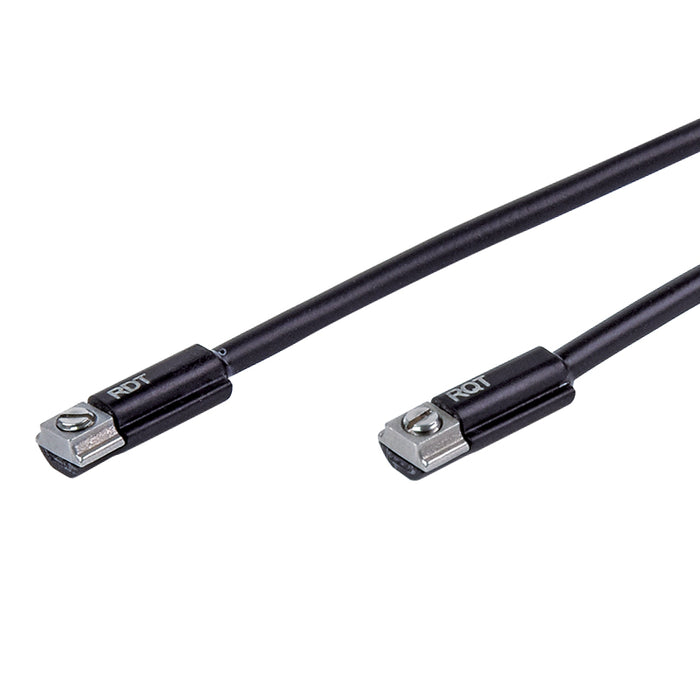

Mindman Non-Contact Sensor Switches – RDT / RDC / RQT / RQC

SKU RDT-2M
by Mindman
$14.37 - $24.97
$14.37
$14.37 - $24.97
$14.37
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman RDT / RDC (non-contact) and RQT / RQC (NPN & PNP configurable) sensor switches; V = angle cable.

Select the options below; the full Mindman ordering code is shown as the SKU (see SKU).

Price is the Mindman list price.

Specifications

Wiring method 2 wire, 3 wire
Switching logic Normally open
Switch type Non-contact, NPN current sinking, PNP current sourcing
Operating voltage 5~30V DC
Switching current 50~80mA max.
Contact rating 1.5~2.4W max. (※1)
Current consumption 2 mA@24V DC max. (※5)
Voltage drop 4.0V @50mA max, 1.2V @80mA max. (※5)
Leakage current 0.1mA max, 0.01mA max. (※5)
Magnet requirement 40~1000 Gauss (※5,6)
Indicator Red LED
Cable ø2.8, 27AWG, Black, PVC
Operating frequency 1000 Hz
Temperature range –10~+70°C (No freezing)
Shock 50G (※2)
Vibration 9G (※3)
Enclosure classification IEC 60529 IP67
Protection circuit 2, 3, 4, 5 (※4,7)
Weight 19.5~21.5 g (2m cable)
Connect diagram ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur.; ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time.; ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time.; ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression / 5=Sensor thermal protection.; ※5. It bases on conditions of voltage 24V DC, ambient temp. 25°C and cable 2M length. Voltage drop increases in pace with cable length.; ※6. Measuring standard target: ø15.5 × ø8 × 5t (Anisotropy rubber magnet); ※7. The LED will flash when short-circuit or sensor thermal protection is ON.; ※8. Please turn off the power before installing or changing the output contact, and ensure the load is installed according to the wiring diagram to prevent abnormal operation or product malfunction.
