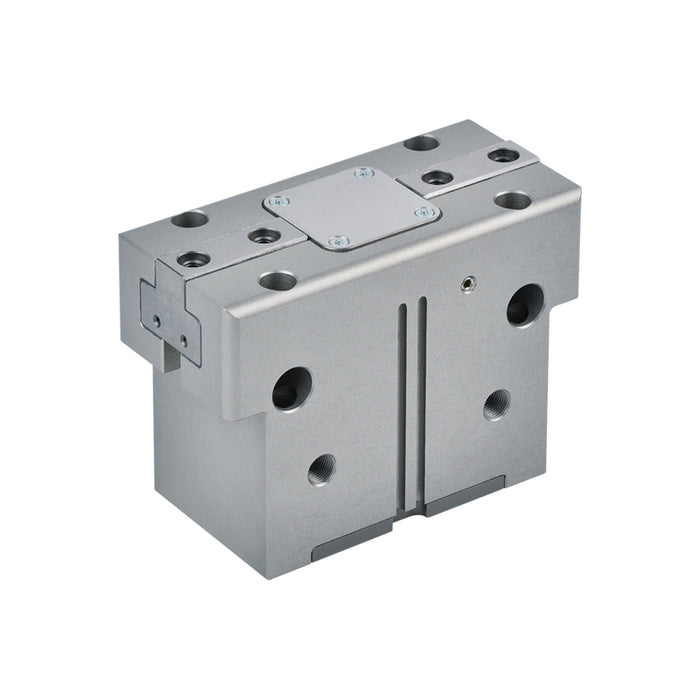

Mindman MCHS series

Mindman SD-MCHS Dust-Proof Module for MCHS Grippers

SKU SD-MCHS-50
by Mindman
$189.03 - $770.20
$189.03
$189.03 - $770.20
$189.03
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman SD dust-proof module for MCHS grippers.

Select the options below; the full Mindman ordering code is shown as the SKU (SD-MCHS-[size]).

Price is the Mindman list price.

Specifications

Acting type Double acting
Size 50, 66, 80, 100, 125, 160, 200, 300
Medium Air
Stroke per-jaw 4~30 mm
Effective external gripping force (N) (※1) 69~3283 N
Operating pressure range 0.3~0.8 MPa
Ambient temperature ＋5℃~＋80℃
Close/Open time 0.02 ~ 0.45 s
Lubrication Not required
Compressed air consumption 4.1 ~ 1000 cm3
Accessories Mounting block, Accessory kits
Sensor switch 2 wire RDFE(V): Non-contact; 3 wire RNFE(V): NPN, RPFE(V): PNP
Proximity sensor RJY
Weight 0.14~14.2 kg
Recom. work piece weight 0.85~32 kg
Remark ※1. Under the condition of clamping length 40mm and operation pressure 0.6 MPa.; ※2. Regularly relubricate the finger to increase the service life. Please contact us for grease info.
Series Mindman MCHS
