Mindman MVVZA series

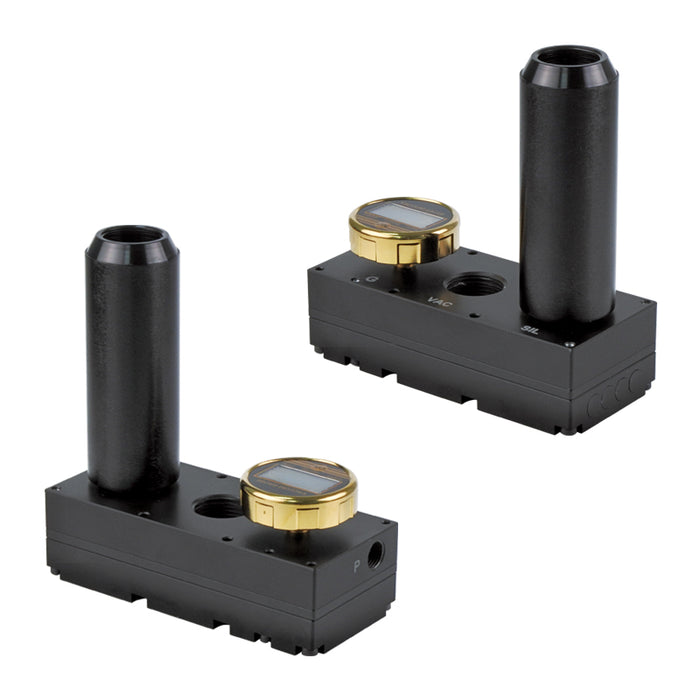

Mindman MVVZA Vacuum Generator

SKU MVVZA-15-2
by Mindman
$328.05 - $666.43
$491.06
$328.05 - $666.43
$491.06
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVVZA vacuum generators.

Select the options below; the full Mindman ordering code is shown as the SKU (see SKU).

Price is the Mindman list price.

Specifications

Nozzle number 2, 4
Nozzle dia. 1.5 mm
Port size Please refer to dimensions
Medium Air
Operating pressure range 0.1~0.6 MPa
Ambient temperature 0~＋60℃ (No freezing)
Final vacuum -92 kPa (-690 mmHg)
Suction flow 350 L/min, 500 L/min
Air consumption 310 L/min, 550 L/min
Supply pressure 0.6 MPa
Lubrication Not required
Weight 755g, 826G
Series Mindman MVVZA

No additional information at this time.
