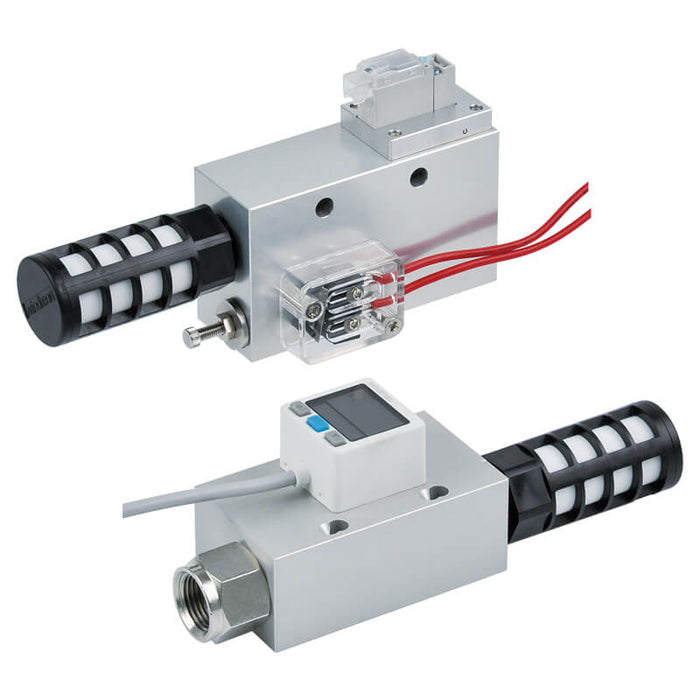

Mindman MVVA series

Mindman MVVA Vacuum Generator

SKU MVVA-10
by Mindman
$42.08 - $158.78
$42.08
$42.08 - $158.78
$42.08
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVVA vacuum generators (S = solenoid valve control, SJ = adjustable vacuum switch).

Select the options below; the full Mindman ordering code is shown as the SKU (MVVA-[nozzle][S]-[SJ]-[thread]).

Pressure-switch (EV) versions: contact us.

Price is the Mindman list price.

Specifications

Model MVVA
Nozzle dia. 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm
Port size Rc1/8, Rc1/4, Rc3/8, Rc3/4, Rc1/2, Rc3/4
Medium Air
Operating pressure range 0.1~0.6 MPa
Ambient temperature 0~＋60℃ (No freezing)
Final vacuum －91.8 kPa (－690mmHg)
Suction flow 32 l/min, 63 l/min, 130 l/min, 160 l/min, 225 l/min
Air consumption 76 l/min, 100 l/min, 185 l/min, 265 l/min, 385 l/min
Supply pressure 0.5 MPa
Lubricator Not required
Weight Standard: 84g, 126g, 294g, 672g, 787g; SJ type: 110g, 158g, 321g; EV type: 162g, 197g, 353g
Series Mindman MVVA
