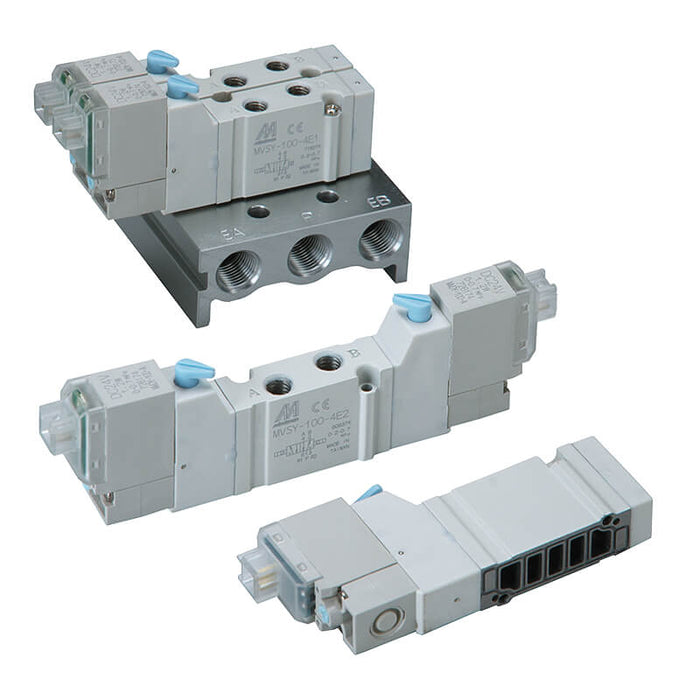

Mindman MVSY-100-1A Mounting Bracket

Specifications

Body width 10 mm
Bore No. M5
Port size M5 x 0.8
No. of port 5
No. of position 2
Medium Air
Operating pressure range 0.2~0.7 MPa
Operating perssure (LP) 0.0~0.7 MPa
Pilot pressure range (LP) 0.25~0.7 MPa
Proof pressure 1 MPa
Flow 218 l/min
Effective orifice 4.5 mm²
Response time 15ms
Max. operating frequency 5 Hz
Ambient temperature +5~+50°C
Voltage AC110(50/60)Hz, DC6 / 12 / 24 V
Power consumption AC=1.6 / 2.5VA, DC=0.55W (LED indicator)
Available voltage range ±10%
Insulation class B class
Weight Valve: 30g, 44g, 59g; Manifold: 5B: 14n+42g, 5M: 46n+87g (n: Stations)
Series Mindman MVSY-100
