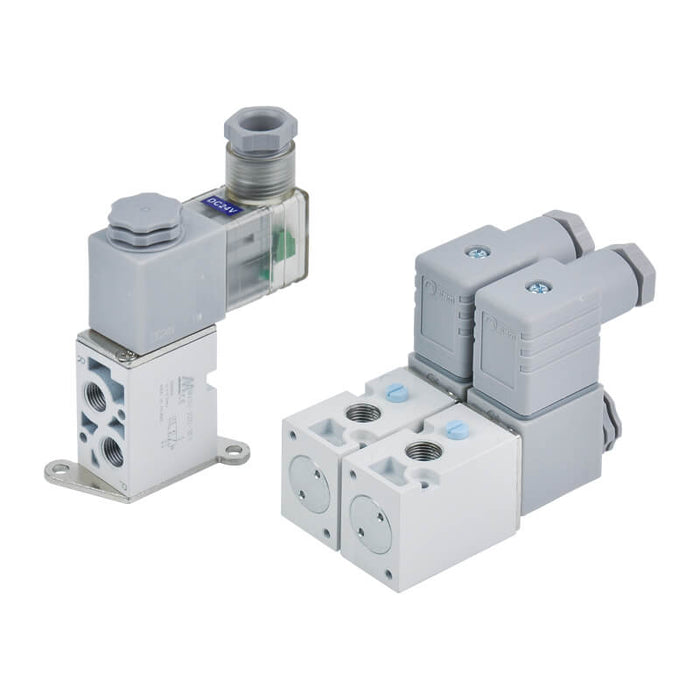

Mindman MVSV-220 series

Mindman MVSV-220-3E1 Solenoid Valve, 3/2-Way Single Solenoid (Body Ported)

SKU MVSV-220-3E1-DC24
by Mindman
$42.13 - $56.57
$42.13
$42.13 - $56.57
$42.13
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSV-220 series 3/2-way single solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSV-220-3E1-[Voltage]-[Connection]-[Thread]

Specifications

Bore No. 6A
Port size 1/8
No. of port 3
No. of position 2
Medium Air, low vacuum
Operating perssure range -101kPa ~ 0.7 MPa
Proof pressure 1 MPa (low vacuum: -101 kPa)
Effective orifice P→A: 5.2 mm2, R→A: 6.0 mm2; A→P: 6.2 mm2, A→R: 5.8 mm2
Reponse time 20 ms
Ambient temperature –5~+50°C (No freezing)
Voltage DC24V
Power consumption Standard: 7W; Power saving: Start:7W (※1) Power saving:3W
Available voltage range (※2) ±10%
Insulation class F class
Weight 164g (with bracket: 181)
Remark ※1. Power saving covert time 350ms.; ※2. Energy saving DC24V: -5%~+10%.
Series Mindman MVSV-220
