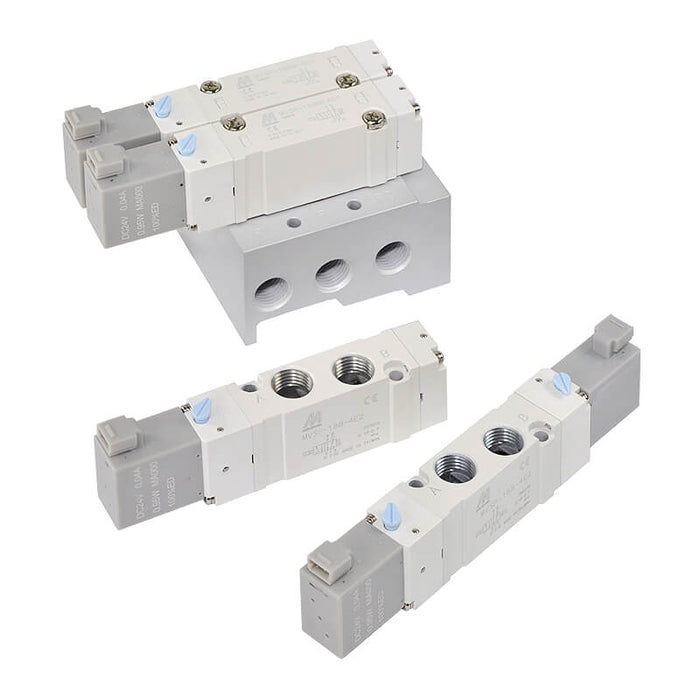

Mindman MVSP-188 series

Mindman MVSP-188-4E2 Solenoid Valve, 5/2-Way Double Solenoid (Body Ported)

SKU MVSP-188-4E2-AC220-H
by Mindman
$59.44 - $81.75
$74.31
$59.44 - $81.75
$74.31
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSP-188 series 5/2-way double solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSP-188-4E2-[Voltage]-[Connection]-[Thread]

Specifications

Body width 18 mm
Bore No. 8A
Port size 1/4
No. of port 5
No. of position 2, 3
Medium Air
Operating pressure range 0.15~0.7 MPa, 0.2~0.7 MPa(5/3)
Proof pressure 1 MPa
Flow 599~1470 Nl /min
Effective orifice 15 mm², 16.3/27/12.4 mm² (5/3)
Response time DC < 23 ms, AC < 35 ms, DC < 33 ms, AC < 45 ms (5/3)
Ambient temperature -5~+50°C (No freezing)
Voltage AC110V, AC220V (50/60)Hz, DC12/24V
Power consumption AC=2.5VA, DC=0.95W
Available voltage range ±10%
Insulation class F class
Weight Valve: 96g, 132g, 142g; Manifold: 5B: 50n+70g, 5M: 101n+139g (n: Stations)
Remark * For quick response type, it cannot be energized for more than 30 minutes.
Series Mindman MVSP-188
