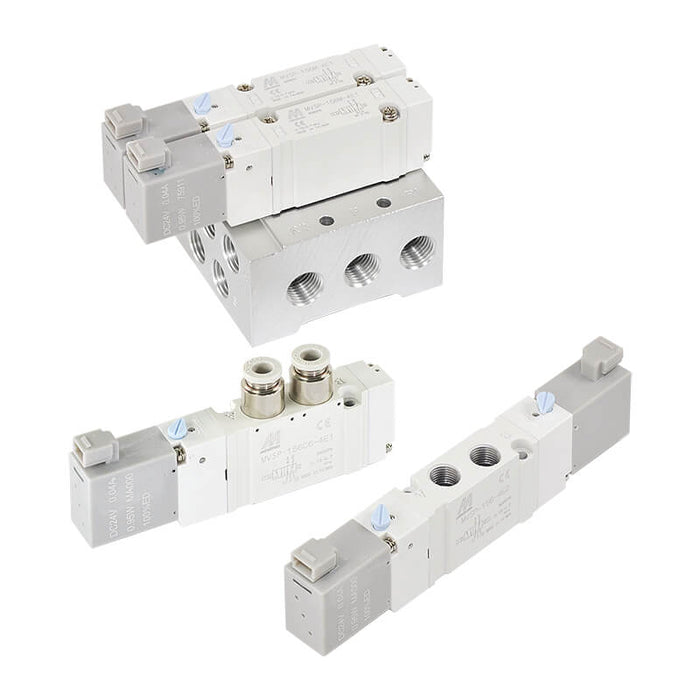

Mindman MVSP-156 series

Mindman MVSP-156M-4E2C Solenoid Valve, 5/3-Way Closed Center (Manifold Type)

SKU MVSP-156M-4E2C-AC220-H
by Mindman
$78.05 - $100.35
$92.92
$78.05 - $100.35
$92.92
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSP-156 series 5/3-way closed center solenoid valve (manifold mount).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSP-156M-4E2C-[Voltage]-[Connection]-[Thread]

Specifications

Body width 15 mm
Bore No. 6A
Port size 1/8
No. of port 5
No. of position 2, 3, 4
Medium Air
Operating pressure range 0.15~0.7 MPa, 0.2~0.7 MPa
Proof pressure 1 MPa
Flow 381~762 l/min
Effective orifice Body ported: 11 mm2, 9.5/14.6/9.5 mm2, Manifold: 10 mm2, 7.5/13/8 mm2
Response time Standard: AC<36ms, DC<23ms, AC<46ms, DC<25ms; Quick response: AC<32ms, DC<20ms, AC<40ms, DC<22ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC12/24V
Power consumption Standard: AC=1.12VA, DC=0.95W; Quick response: AC=2.5VA, DC=2.5W
Available voltage range ±10%
Insulation class F class
Weight Valve: 83g, 118g, 127g; Manifold: 5B: 42n+70g, 5M: 85n+132g (n: Stations)
Remark * For quick response type, it cannot be energized for more than 30 minutes.
Series Mindman MVSP-156
