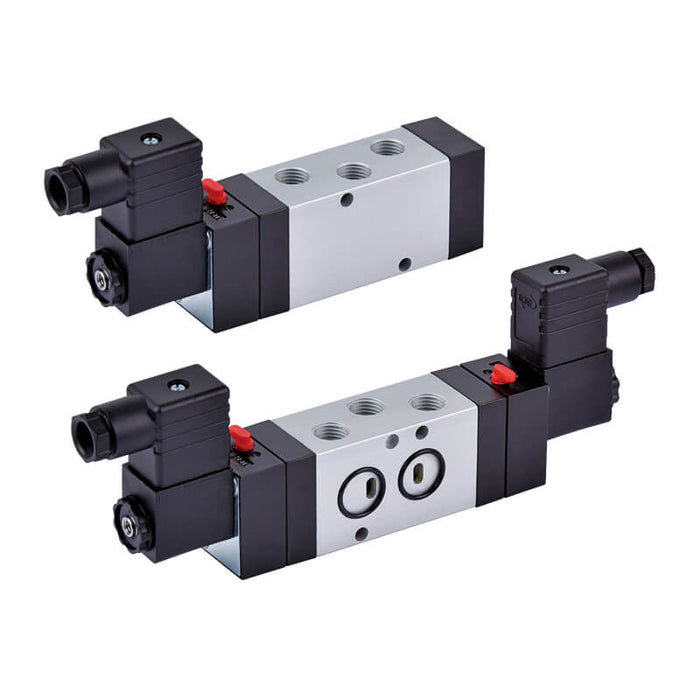

Mindman MVSN2-300 series

Mindman MVSN2-300-4E2C Solenoid Valve, 5/3-Way Closed Center (Body Ported)

SKU MVSN2-300-4E2C-HHT-AC230-G
by Mindman
$728.09 - $786.04
$786.04
$728.09 - $786.04
$786.04
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSN2-300 5/3-way closed center solenoid valve, DIN terminal, G thread.

Made to order - contact us for lead time.

Specifications

Bore No. 8A
Port size G1/4
No. of port 5
No. of position 2~3
Medium Air
Operating pressure range 0.15~1 MPa
Flow (*) 800~1080 Nl/min
Reponse time 50 ms
Ambient temperature /; Fluid temperature HHT: –10~+120°C / 0~+50°C; LLT: –35~+50°C / –10~+40°C
Voltage AC230V, 115V, 24V(50/60)Hz, DC24V, 12V
Power consumption AC=5VA, DC=3W
Available voltage range ±10%
Insulation class HHT: H class, LLT: F class
Remark * The flow rate is the value when the intake pressure is 0.6 MPa, the temperature is 20°C, and the pressure drop ΔP=0.1 MPa.
Series Mindman MVSN2-300
