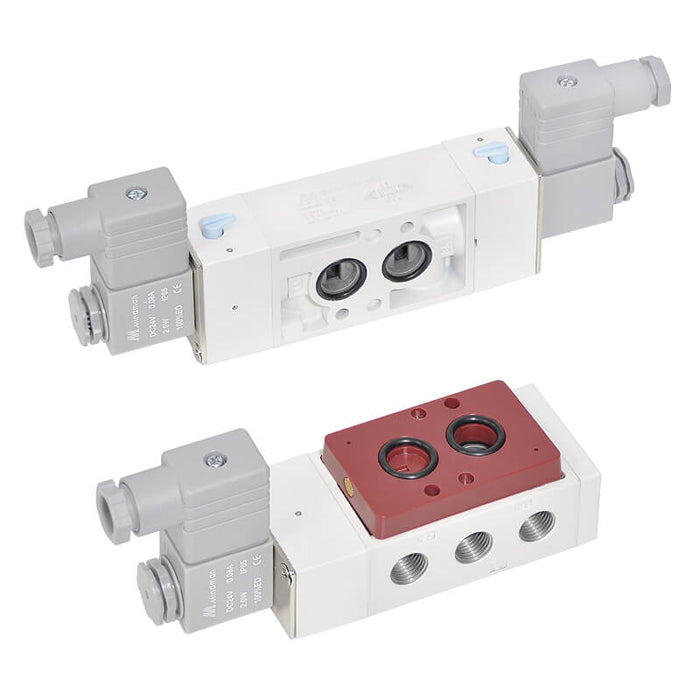

Mindman MVSN-300 series

Mindman MVSN-300-4E2 Solenoid Valve, 5/2-Way Double Solenoid (Body Ported)

SKU MVSN-300-4E2-AC220
by Mindman
$67.99 - $442.02
$67.99
$67.99 - $442.02
$67.99
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSN-300 series 5/2-way double solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSN-300-4E2-[Voltage]-[Connection]

Specifications

Body width 30 mm
Bore No. 8A
Port size G1/4
No. of port 5
No. of position 2,3
Medium Air
Operating pressure range 0.2~0.8 MPa, 0.3~0.8 MPa (5/3)
Proof pressure 1 MPa
Effective orifice 35 mm², 30 mm² (5/3)
Response time 50 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*1) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight 422g~764g
Remark *1. Power saving covert time 100ms.; *2. Port thread Rc. NPT. are also available.
Series Mindman MVSN-300
