Mindman MVSN-220 series

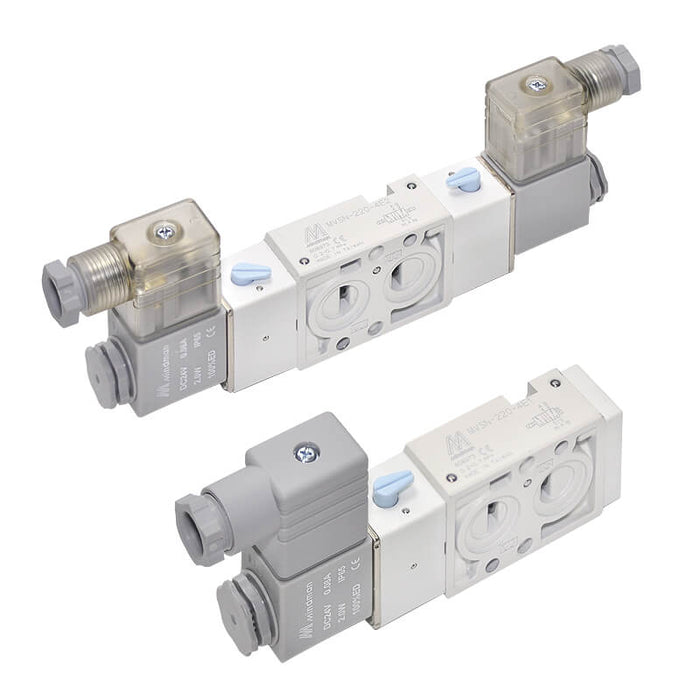

Mindman MVSN-220-4E1 Solenoid Valve, 5/2-Way Single Solenoid (Body Ported)

SKU MVSN-220-4E1-AC220
by Mindman
$41.96 - $219.50
$41.96
$41.96 - $219.50
$41.96
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSN-220 series 5/2-way single solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSN-220-4E1-[Voltage]-[Connection]

Specifications

Bore No. 6A, 8A
Port size G1/8, G1/4
No. of port 5
No. of position 2
Medium Air
Operating pressure range 0.2~0.8 MPa
Proof pressure 1 MPa
Flow 980 l/min
Effective orifice 18 mm²
Response time 38 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, AC220V (50/60)Hz, AC/DC 24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight 233 g, 343 g
Remark * Power saving covert time 100ms.
Series Mindman MVSN-220
