Mindman MVSI-510 series

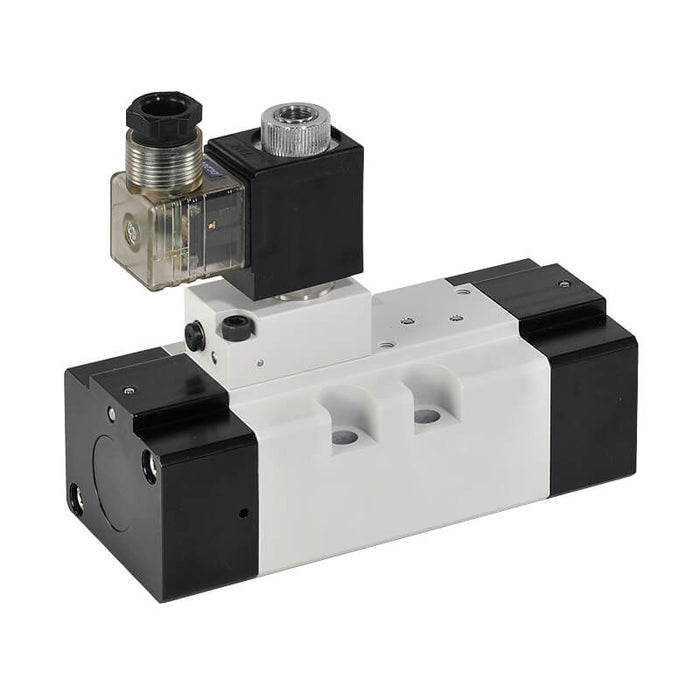

Mindman MVSI-510-4E2 Solenoid Valve, 5/2-Way Double Solenoid (Body Ported)

SKU MVSI-510-4E2-AC220
by Mindman
$372.32 - $378.44
$372.32
$372.32 - $378.44
$372.32
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSI-510 series 5/2-way double solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSI-510-4E2-[Voltage]-[Connection]

Specifications

Body width 51 mm
No. of port 5
No. of position 2
Medium Air
Operating pressure range 0.2~0.7 MPa
Proof pressure 1 MPa
Effective orifice 65 mm²
Response time 60 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption AC=13/11VA, DC=10W
Available voltage range ±10%
Insulation class H class
Weight 1493g, 1778g
Series Mindman MVSI-510
