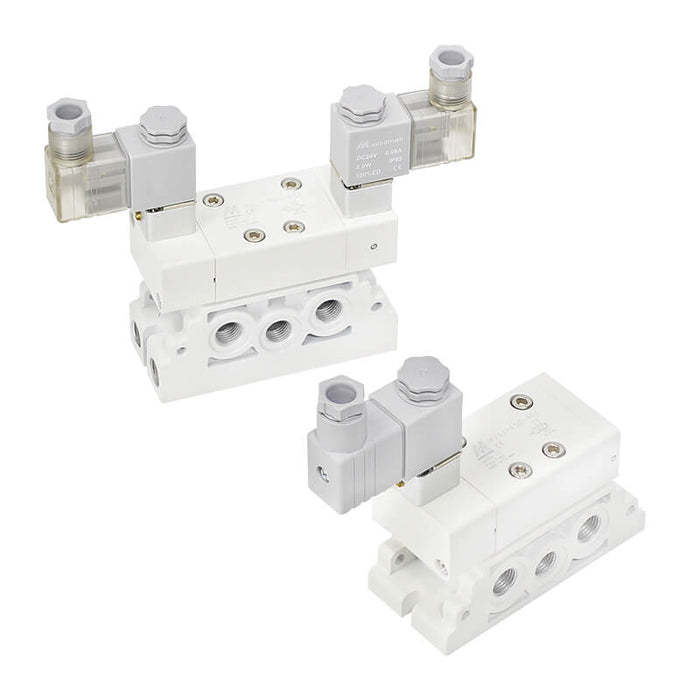

Mindman MVSI-450 series

Mindman MVSI-450-4E1 Solenoid Valve, 5/2-Way Single Solenoid (Body Ported)

SKU MVSI-450-4E1-AC220
by Mindman
$94.92 - $267.34
$94.92
$94.92 - $267.34
$94.92
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSI-450 series 5/2-way single solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSI-450-4E1-[Voltage]-[Connection]

Specifications

Body width 45mm
No. of port 5
No. of position 2
Medium Air
Operating pressure range 0.2~0.7 MPa
Proof pressure 1 MPa
Effective orifice 27 mm²
Response time 40 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight 380g, 540g
Remark * Power saving covert time 100ms.
Series Mindman MVSI-450
