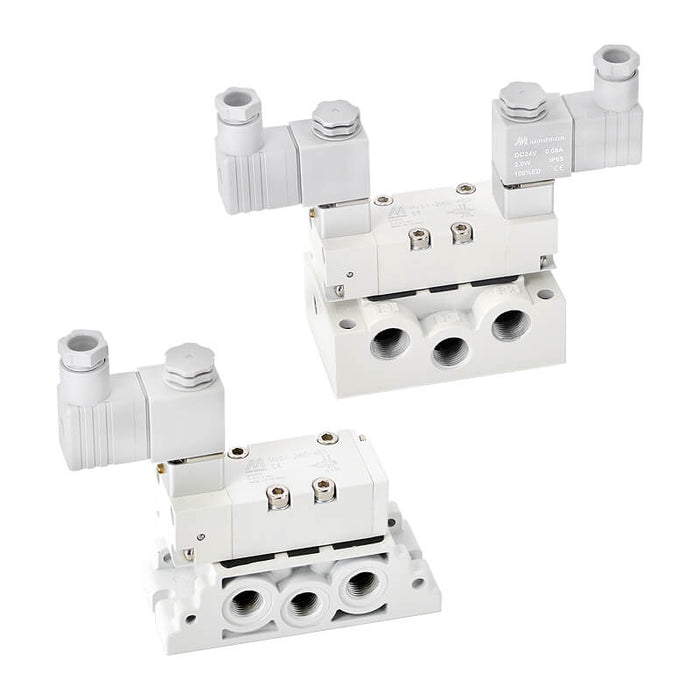

Mindman MVSI-260 series

Mindman MVSI-260-4E2R Solenoid Valve, 5/3-Way Exhaust Center (Body Ported)

SKU MVSI-260-4E2R-AC220
by Mindman
$159.53 - $508.50
$159.53
$159.53 - $508.50
$159.53
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSI-260 series 5/3-way exhaust center solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSI-260-4E2R-[Voltage]-[Connection]

Specifications

Body width 26mm
No. of port 5
No. of position 2, 3
Medium Air
Operating pressure range 0.2~0.7 MPa, 0.3~0.7 MPa(5/3)
Proof pressure 1 MPa
Effective orifice 22mm²,20mm² (5/3)
Response time 40ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight 312g~572g
Remark * Power saving covert time 100ms.
Series Mindman MVSI-260
