Mindman MVSG-180 series

Mindman MVSG-180 Manifold 5B - 5 Port, Body ported type

SKU MVSG-180-5B1-G
by Mindman
$7.48 - $34.45
$7.48
$7.48 - $34.45
$7.48
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

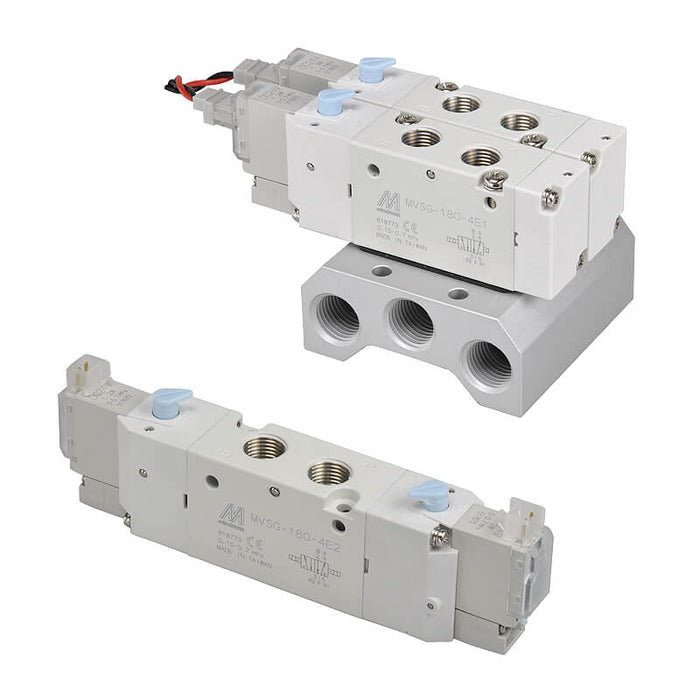

Mindman manifold for MVSG-180 solenoid valves (Body ported type (5B/3B)).

Select the number of stations and port thread.

Specifications

Bore No. 6A
Port size Rc1/8
No. of port 5
No. of position 2, 3
Medium Air
Operating pressure range 0.15~0.7 MPa, 0.3~0.7 MPa (5/3)
Proof pressure 1 MPa
Effective orifice 10 mm²
Response time 15 ms, 30 ms (5/3)
Ambient temperature +5~+50℃
Voltage AC110V (50/60)Hz, DC6/12/24V
Power consumption AC=1.6VA, DC=0.55W
Available voltage range ±10%
Insulation class B class
Weight 74 g, 94 g, 132 g
Series Mindman MVSG-180
