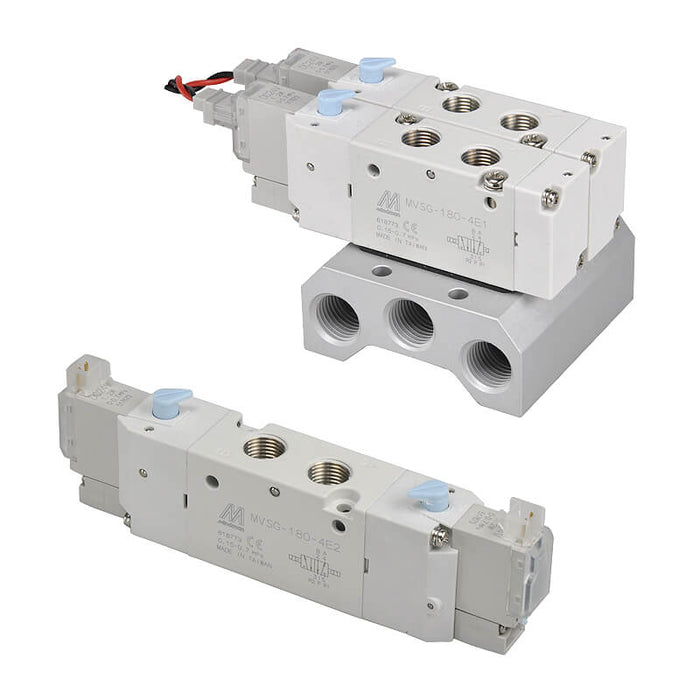

Mindman MVSG-180 series

Mindman MVSG-180-4E2R Solenoid Valve, 5/3-Way Exhaust Center (Body Ported)

SKU MVSG-180-4E2R-DC24-LJ
by Mindman
$130.26 - $156.18
$130.26
$130.26 - $156.18
$130.26
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSG-180 series 5/3-way exhaust center solenoid valve (body ported).

Electrical connection: LJ - plug on side with flying leads (JPC type), 500mm.

Price varies by coil voltage.

Specifications

Bore No. 6A
Port size Rc1/8
No. of port 5
No. of position 2, 3
Medium Air
Operating pressure range 0.15~0.7 MPa, 0.3~0.7 MPa (5/3)
Proof pressure 1 MPa
Effective orifice 10 mm²
Response time 15 ms, 30 ms (5/3)
Ambient temperature +5~+50℃
Voltage AC110V (50/60)Hz, DC6/12/24V
Power consumption AC=1.6VA, DC=0.55W
Available voltage range ±10%
Insulation class B class
Weight 74 g, 94 g, 132 g
Series Mindman MVSG-180

No additional information at this time.
