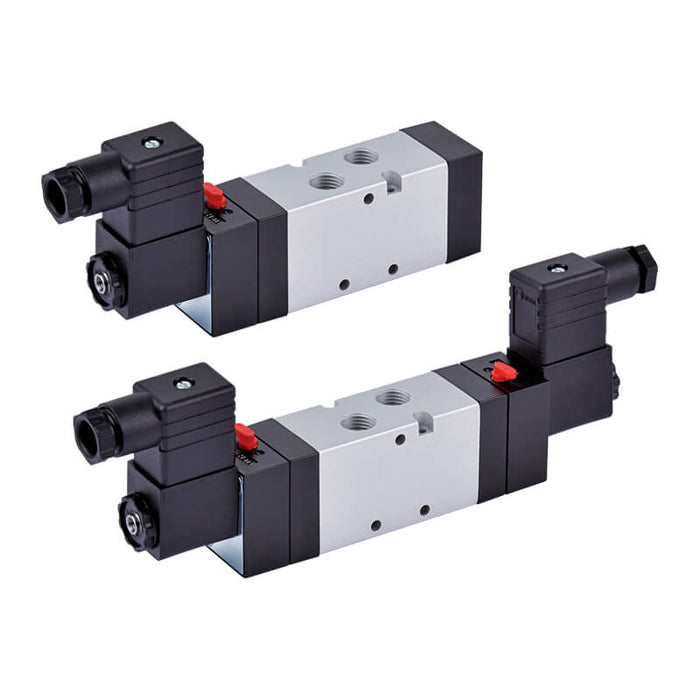

Mindman MVSE2-300 series

Mindman MVSE2-300 Manifold 5B - 5 Port, Body ported type

SKU MVSE2-300-5B2-G
by Mindman
$88.53 - $337.99
$88.53
$88.53 - $337.99
$88.53
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman manifold for MVSE2-300 solenoid valves (Body ported type (5B/3B)).

Select the number of stations and port thread.

Specifications

Bore No. 6~15A
Port size G1/4
No. of port 3~5
No. of position 2~3
Medium Air
Operating pressure range 0.12~1 MPa
Flow (*) 530~3500 Nl/min
Reponse time 20~60 ms
Ambient temperature /; Fluid temperature HHT: –10~+120°C / 0~+50°C; LLT: –35~+50°C / –10~+40°C
Voltage AC230V, 115V, 24V(50/60)Hz, DC24V, 12V
Power consumption AC=5VA, DC=3W
Available voltage range ±10%
Insulation class HHT: H class, LLT: F class
Weight 300~500 g
Remark * The flow rate is the value when the intake pressure is 0.6 MPa, the temperature is 20°C, and the pressure drop ΔP=0.1 MPa.
Series Mindman MVSE2-300
