Mindman MVSE2-300 series

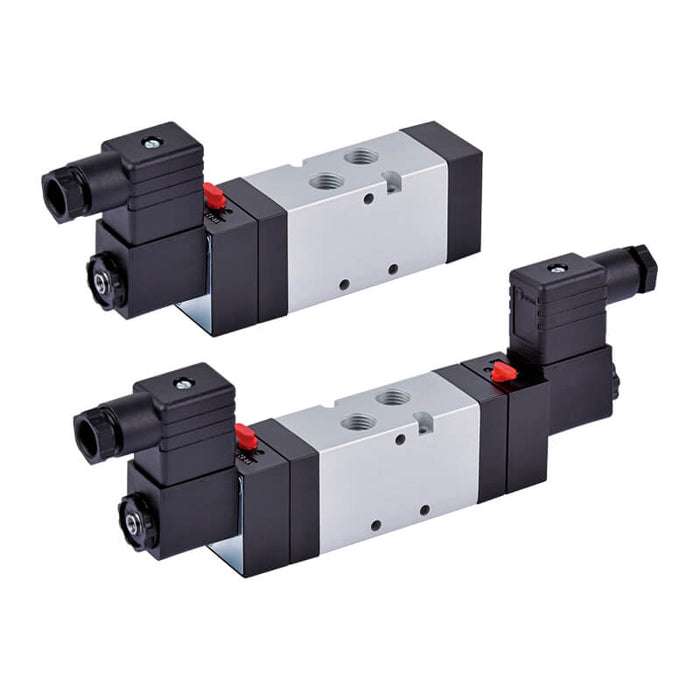

Mindman MVSE2-300-4E1 Solenoid Valve, 5/2-Way Single Solenoid (Body Ported)

SKU MVSE2-300-4E1-HHT-AC230-G
by Mindman
$494.43 - $537.87
$537.87
$494.43 - $537.87
$537.87
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSE2-300 5/2-way single solenoid solenoid valve, DIN terminal, G thread.

Made to order - contact us for lead time.

Specifications

Bore No. 6~15A
Port size G1/4
No. of port 3~5
No. of position 2~3
Medium Air
Operating pressure range 0.12~1 MPa
Flow (*) 530~3500 Nl/min
Reponse time 20~60 ms
Ambient temperature /; Fluid temperature HHT: –10~+120°C / 0~+50°C; LLT: –35~+50°C / –10~+40°C
Voltage AC230V, 115V, 24V(50/60)Hz, DC24V, 12V
Power consumption AC=5VA, DC=3W
Available voltage range ±10%
Insulation class HHT: H class, LLT: F class
Weight 300~500 g
Remark * The flow rate is the value when the intake pressure is 0.6 MPa, the temperature is 20°C, and the pressure drop ΔP=0.1 MPa.
Series Mindman MVSE2-300
