Mindman MVSE-500 series

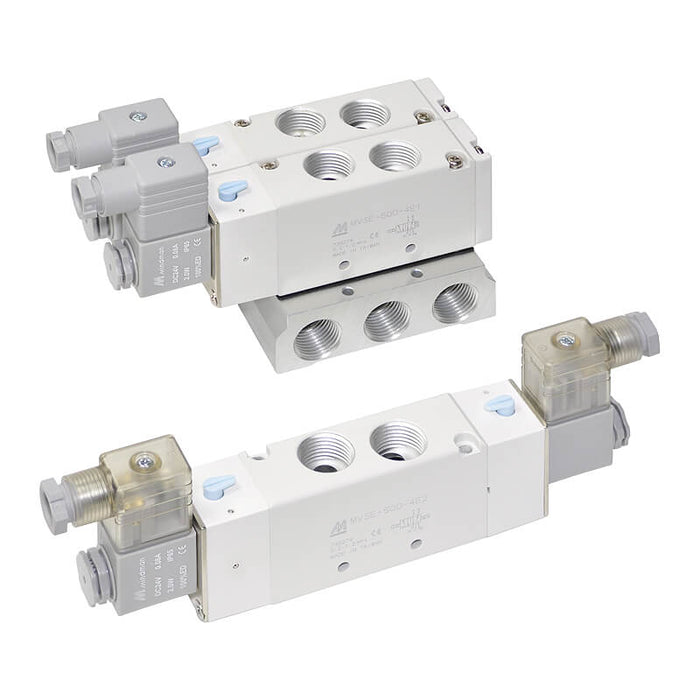

Mindman MVSE-500-4E2 Solenoid Valve, 5/2-Way Double Solenoid (Body Ported)

SKU MVSE-500-4E2-AC220
by Mindman
$107.40 - $458.45
$107.40
$107.40 - $458.45
$107.40
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSE-500 series 5/2-way double solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSE-500-4E2-[Voltage]-[Connection]-[Thread]

Specifications

Body width 50mm
Bore No. 15A
Port size 1/2
No. of port 5
No. of position 2
Medium Air
Operating pressure range 0.2~1.2 MPa
Proof pressure 1.5 MPa
Flow 2232 l/min
Effective orifice 41 mm²
Response time 50 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, AC220V (50/60)Hz, DC24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight Valve: 453g, 554g; Manifold: 145n+91 (n: Stations)
Remark * Power saving covert time 100ms.
Series Mindman MVSE-500
