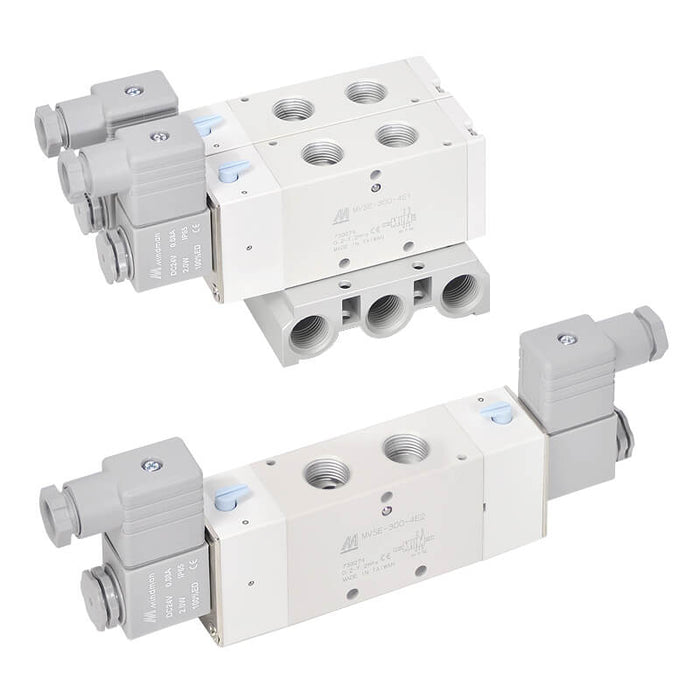

Mindman MVSE-300 series

Mindman MVSE-300-4E2P Solenoid Valve, 5/3-Way Pressure Center (Body Ported)

SKU MVSE-300-4E2P-AC220
by Mindman
$107.63 - $458.67
$107.63
$107.63 - $458.67
$107.63
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSE-300 series 5/3-way pressure center solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSE-300-4E2P-[Voltage]-[Connection]-[Thread]

Specifications

Body width 30 mm
Bore No. 10A
Port size 3/8
No. of port 5
No. of position 2, 3
Medium Air
Operating pressure range 0.2~1.2 MPa, 0.3~1.2 MPa (5/3)
Proof pressure 1.5 MPa
Flow 1851, 1906 l/min
Effective orifice 34.5, 35 mm² (5/3)
Response time 50 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, AC220V (50/60)Hz, DC24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight Valve: 406, 508, 577g; Manifold: 95.5n+35 (n: Stations)
Remark * Power saving covert time 100ms.
Series Mindman MVSE-300
