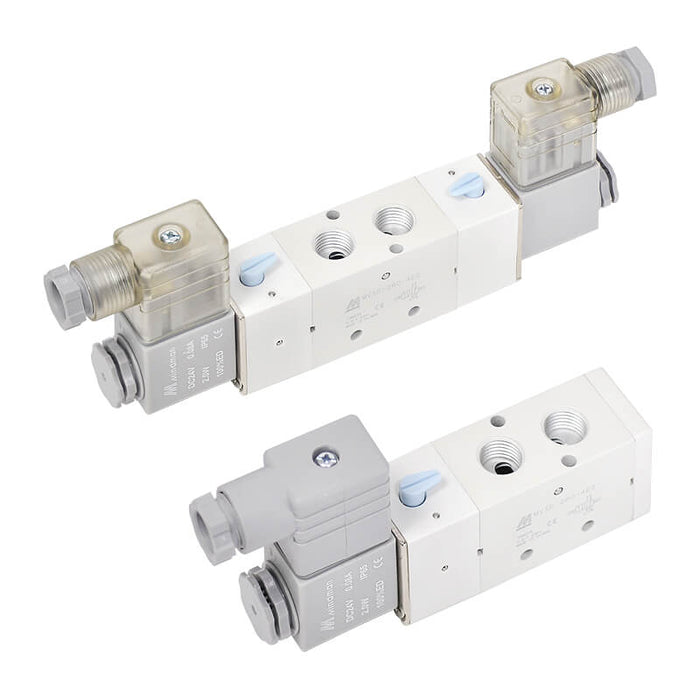

Mindman MVSE-260 series

Mindman MVSE-260-4E1 Solenoid Valve, 5/2-Way Single Solenoid (Body Ported)

SKU MVSE-260-4E1-AC220
by Mindman
$59.80 - $235.30
$59.80
$59.80 - $235.30
$59.80
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSE-260 series 5/2-way single solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSE-260-4E1-[Voltage]-[Connection]-[Thread]

Specifications

Bore No. 8A
Port size 1/4
No. of port 5
No. of position 2,3
Medium Air
Operating pressure range 0.2~1.2 MPa, 0.3~1.2 MPa (5/3)
Proof pressure 1.5 MPa
Effective orifice 18 mm², 16 mm² (5/3)
Response time 40 ms, 35 ms (5/3)
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, AC220V (50/60)Hz, DC24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight Valve: 255g, 350g, 405g; Manifold: 76n+52 (n: Stations)
Remark * Power saving covert time 100ms.
Series Mindman MVSE-260
