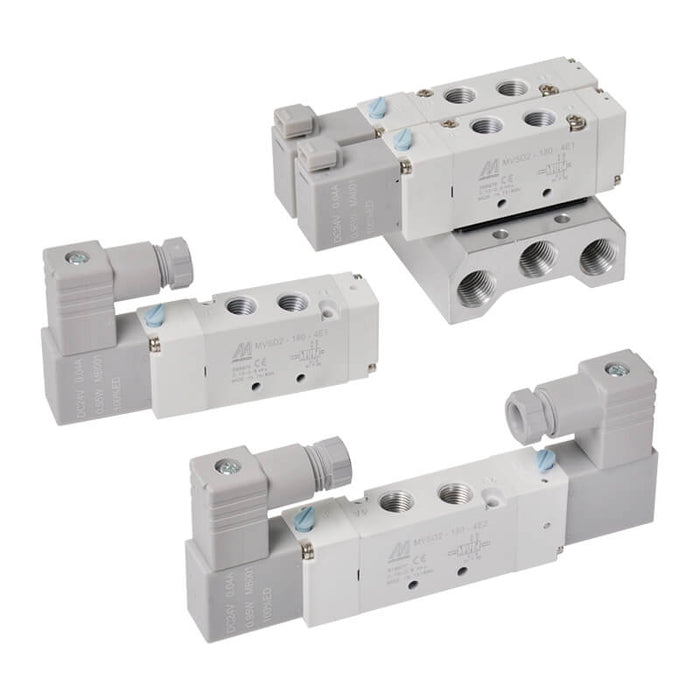

Mindman MVSD2-180 series

Mindman MVSD2-180-4E2 Solenoid Valve, 5/2-Way Double Solenoid (Body Ported)

SKU MVSD2-180-4E2-AC220-H
by Mindman
$59.44 - $81.77
$74.33
$59.44 - $81.77
$74.33
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSD2-180 series 5/2-way double solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSD2-180-4E2-[Voltage]-[Connection]-[Thread]

Specifications

Bore No. 6A
Port size 1/8
No. of port / position 5/2, 5/3
Medium Air
Operating perssure range 0.15~0.8 MPa, 0.2~0.7 MPa
Proof pressure 1 MPa
Effective orifice 12 mm², 9 mm²
Response time-Standard AC<35ms, DC<25ms, AC<45ms, DC<30ms
Response time-Quick response AC<31ms, DC<20ms, AC<41ms, DC<25ms
Power consumption-Standard AC=1.12VA, DC=0.95W
Power consumption-Quick response AC=2.5VA, DC=2.5W
Ambient temperature -5~+50°C (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24/12V
Available voltage range ±10%
Insulation class F class
Weight 94g~143g
Remark * For quick response type, it cannot be energized for more than 30 minutes.
Series Mindman MVSD2-180
