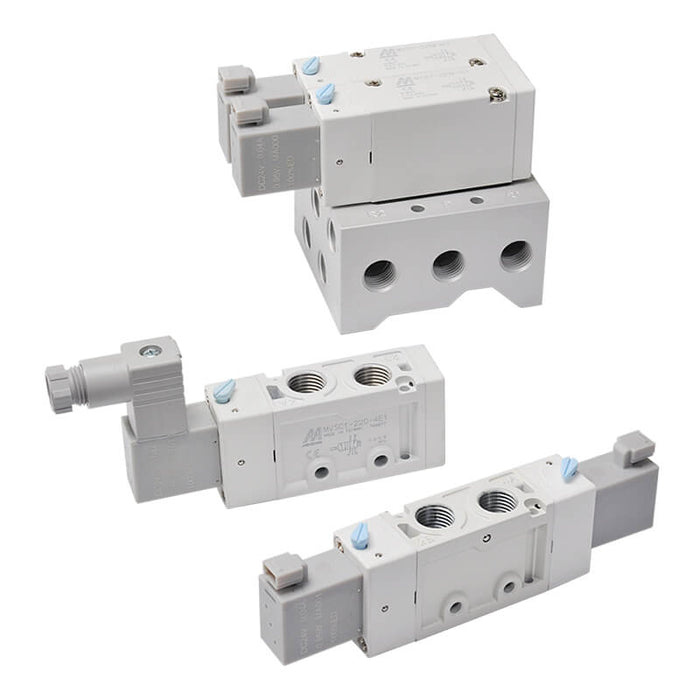

Mindman MVSC1-220 series

Mindman MVSC1-220-3E2 Solenoid Valve, 3/2-Way Double Solenoid (Body Ported)

SKU MVSC1-220-3E2-AC220-H
by Mindman
$64.27 - $86.59
$79.14
$64.27 - $86.59
$79.14
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSC1-220 series 3/2-way double solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSC1-220-3E2-[Voltage]-[Connection]-[Thread]

Specifications

Body width 22 mm
Bore No. 6A, 8A
Port size 1/8, 1/4
No. of port 5
No. of position 2, 3
Medium Air
Operating pressure range 0.2~0.8 MPa, 0.3~0.8 MPa (5/3)
Proof pressure 1 MPa
Flow 871 l/min, 980 l/min (5/3)
Effective orifice 18mm2, 16 mm2 (5/3)
Response time Standard: AC < 40ms, DC < 30ms, AC<50ms, DC<40ms; Quick response: AC < 37ms, DC < 26ms
Ambient temperature －5~+50°C (No freezing)
Voltage AC110V, AC220V (50/60)Hz, DC6/12/24V
Power consumption AC=1.12VA, DC=0.95W
Available voltage range ±10%
Insulation class F class
Weight 86g, 130g, 108g, 152g, 198g
Series Mindman MVSC1-220
