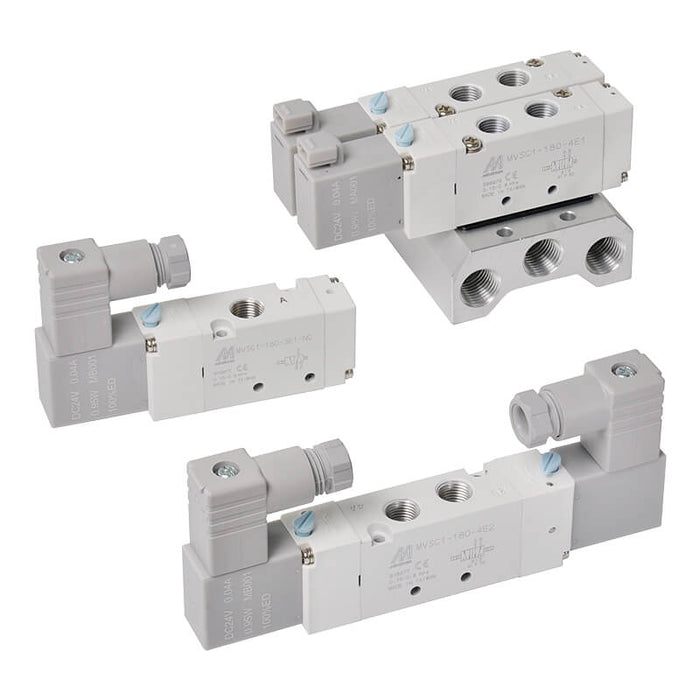

Mindman MVSC1-180 series

Mindman MVSC1-180-4E2P Solenoid Valve, 5/3-Way Pressure Center (Body Ported)

SKU MVSC1-180-4E2P-AC220-H
by Mindman
$78.05 - $100.35
$92.92
$78.05 - $100.35
$92.92
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVSC1-180 series 5/3-way pressure center solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVSC1-180-4E2P-[Voltage]-[Connection]-[Thread]

Specifications

Body width 18 mm
Bore No. 6A
Port size 1/8
No. of port 5
No. of position 2, 3
Medium Air
Operating pressure range 0.15~0.8 MPa, 0.2~0.7 MPa (5/3)
Operating pressure range (LP) 0~0.8 MPa, 0~0.7 MPa
External pilot pressure (LP) 0.15~0.8 MPa, 0.2~0.7 MPa
Proof pressure 1 MPa
Flow 490~817 l/min
Effective orifice 15 mm², 12 mm², 9 mm² (5/3)
Response time DC < 25 ms, AC < 35 ms, DC < 30 ms, AC < 45 ms (5/3)
Ambient temperature －5~+50°C (No freezing)
Voltage AC110V, AC220V (50/60)Hz, DC12/24V
Power consumption AC=1.12VA, DC=0.95W
Available voltage range ±10%
Insulation class F class
Weight 90g, 125g, 94g, 129g, 143g
Series Mindman MVSC1-180
