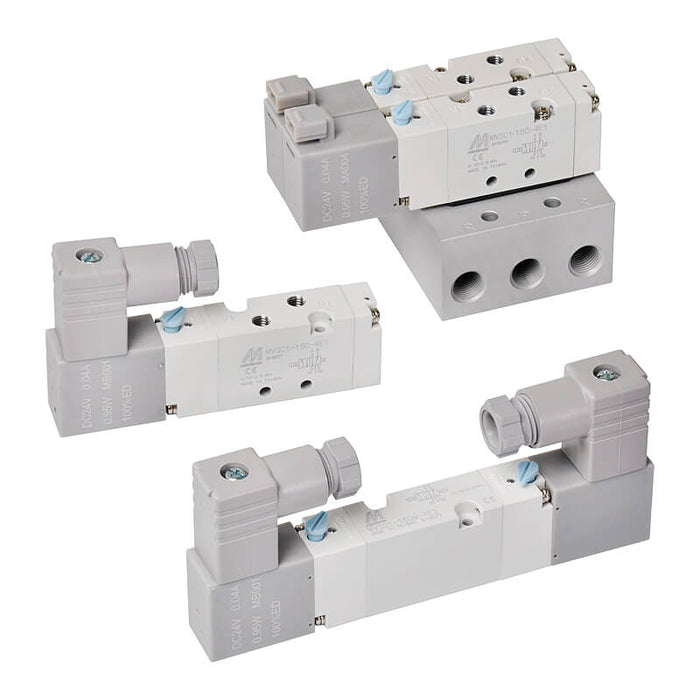

Mindman MVSC1-150-5P Blocking Plate (5 port)

Specifications

Body width 15 mm
Port size M5×0.8
No. of port / position 5 / 2
Medium Air
Operating pressure range 0.15~0.8 MPa
Proof pressure 1 MPa
Flow 163 l/min
Effective orifice 3.8 mm²
Response time DC < 23 ms, AC < 35 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC12/24V
Power consumption AC=1.12VA, DC=0.95W
Available voltage range ±10%
Insulation class F class
Weight 73 g, 108 g
Series Mindman MVSC1-150
