Mindman MVSC-300-3P Blocking Plate (3 port)

Specifications

Bore No. 10A
Port size 3/8
No. of port 3, 5
No. of position 2, 3
Medium Air
Operating pressure range 0.2~0.8 MPa, 0.3~0.8 MPa
Operating pressue (LP) 0.08 MPa
Pilot pressure range (LP) (0.34×P(*1)+0.1)~0.5 MPa
Proof pressure 1 MPa
Effective orifice 30 mm², 35 mm², 25 mm²
Reponse time 50ms
Ambient temperature -5~+50°C (No freezing)
Voltage AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
Power consumption-Power saving DC24V=Start: 2W(*2) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight Valve: 325g, 453g, 320g, 444g, 505g; Manifold: 110n+64g, 85n+52g (n: Stations)
Remark *1. P: Operating pressure; *2. Power saving covert time 100ms.

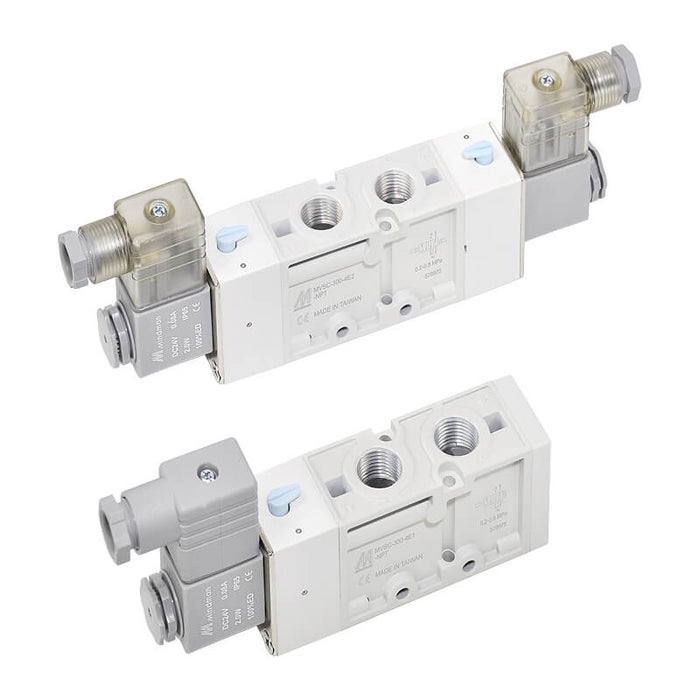

Series Mindman MVSC-300
