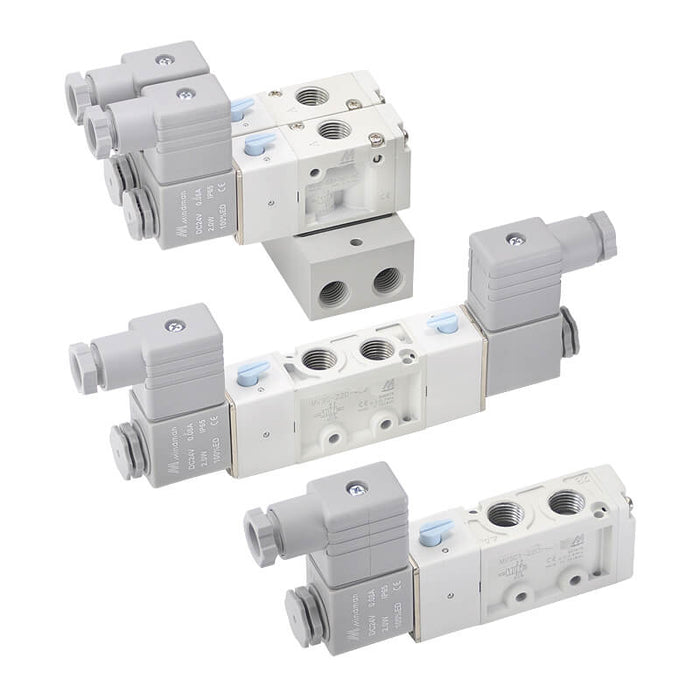

Mindman MVSC-220 series

Mindman MVSC-220M Manifold 5M - 5 Port, Manifold type

SKU MVSC-220M-5M1-G
by Mindman
$27.84 - $115.81
$27.84
$27.84 - $115.81
$27.84
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman manifold for MVSC-220M solenoid valves (Manifold type (5M/3M)).

Select the number of stations and port thread.

Specifications

Bore No. 6A, 8A
Port size 1/8, 1/4
No. of port 3, 5
No. of position 2, 3
Medium Air
Operating pressure range 0.2~0.8 MPa, 0.3~0.8 MPa
Operating pressue (LP) 0~0.8 MPa
Pilot pressure range (LP) (0.34×P(*1)+0.1)~0.5 MPa
Proof pressure 1 MPa
Effective orifice 16mm², 18 mm²
Response time 30 ms, 40 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption-Standard Standard: AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
Power consumption-Power saving DC24V=Start: 2W(*2) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight Valve: 181g, 294g, 198g, 313g, 352g; Manifold: 3B: 56n+77g, 3M: 71n+114g, 5B: 61n+61,137n+157g (n: Stations)
Remark *1. P: Operating pressure; *2. Power saving covert time 100ms.
Series Mindman MVSC-220
