Mindman MVDY-100-3P Blocking Plate (3 port)

Specifications

Body width 10 mm
No. of port 3
No. of position 2
Medium Air
Operating pressure range 0~0.7 MPa, 0~0.9 MPa (A type)
When used in vacuum P port: 0~0.6 Mpa; R port: -90~0 kPa
Effective orifice (mm²) P→A: 0.28, 0.09; A→R: 0.35
Response time DC: 4 ms, AC: 20 ms ※ Pressure is 0.5 MPa, at rated voltage.
Max. operating frequency 5 Hz
Ambient temperature ＋5~＋50℃
Voltage AC110,AC220V(50/60)Hz, DC6/DC12/DC24V
Power consumption AC=1.6 / 2.5VA, DC6/12/24=1.2W, DC24=0.55W (A type); ※ LED indicator as standard.
Available voltage range ±10%
Insulation class B class
Weight 12 g

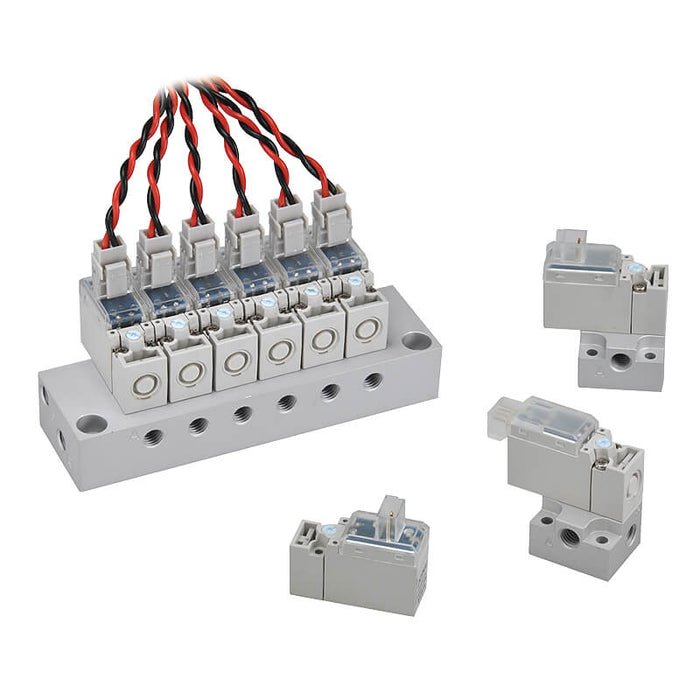

Series Mindman MVDY-100
