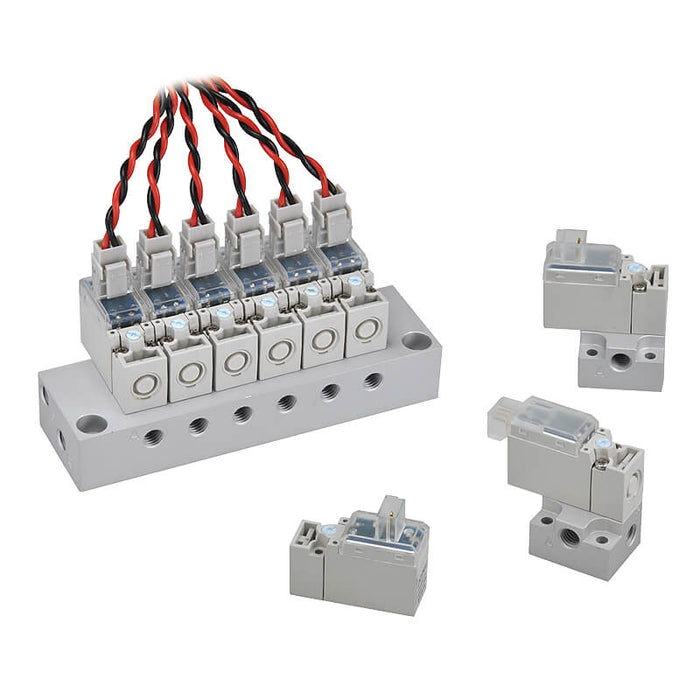

Mindman MVDY-100 series

Mindman MVDY-100 Manifold 3M - 3 Port, Manifold type

SKU MVDY-100-3M1
by Mindman
$14.02 - $56.11
$14.02
$14.02 - $56.11
$14.02
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman manifold for MVDY-100 solenoid valves (Manifold type (5M/3M)).

Select the number of stations.

Specifications

Body width 10 mm
No. of port 3
No. of position 2
Medium Air
Operating pressure range 0~0.7 MPa, 0~0.9 MPa (A type)
When used in vacuum P port: 0~0.6 Mpa; R port: -90~0 kPa
Effective orifice (mm²) P→A: 0.28, 0.09; A→R: 0.35
Response time DC: 4 ms, AC: 20 ms ※ Pressure is 0.5 MPa, at rated voltage.
Max. operating frequency 5 Hz
Ambient temperature ＋5~＋50℃
Voltage AC110,AC220V(50/60)Hz, DC6/DC12/DC24V
Power consumption AC=1.6 / 2.5VA, DC6/12/24=1.2W, DC24=0.55W (A type); ※ LED indicator as standard.
Available voltage range ±10%
Insulation class B class
Weight 12 g
Series Mindman MVDY-100
