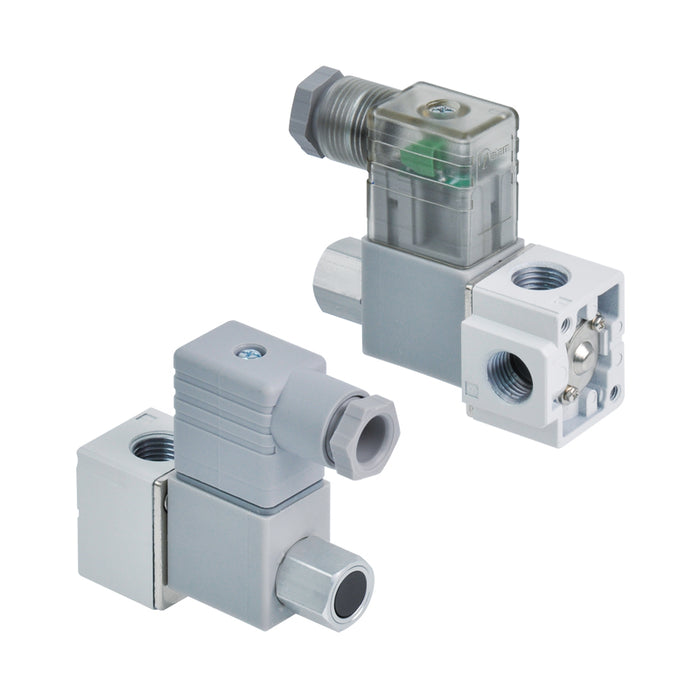

Mindman MVDC-300 series

Mindman MVDC-300-3E1 Solenoid Valve, 3/2-Way Single Solenoid (Body Ported)

SKU MVDC-300-3E1-DC24
by Mindman
$70.51 - $87.46
$70.51
$70.51 - $87.46
$70.51
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVDC-300 series 3/2-way single solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVDC-300-3E1-[Voltage]-[Connection]-[Thread]

Specifications

Bore No. 6A, 8A
Port size Rc1/8, Rc1/4
No. of port 3
No. of position 2
Medium Air, low vacuum
Operating perssure range -101 kPa ~ 1 MPa
Proof pressure 1.5 MPa
Reponse time 20 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage DC24V
Power consumption Standard: 7W; Power saving: Start:7W (※1) Power saving:3W
Available voltage range (※2) ±10%
Insulation class F class
Weight (※3) 156g (188), 153g (185)
Remark ※1. Power saving covert time 350ms.; ※2. Energy saving DC24V: -5%~+10%.; ※3. () The value for with bracket.
Series Mindman MVDC-300
