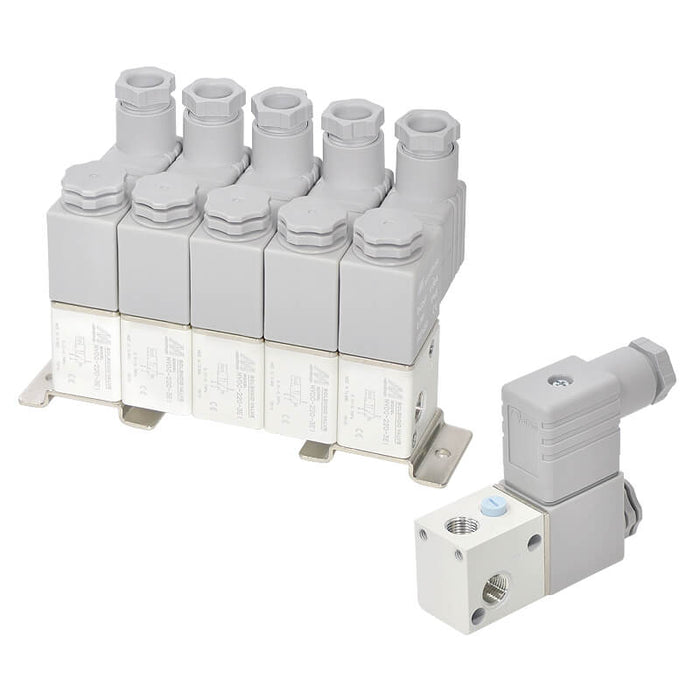

Mindman MVDC-220 series

Mindman MVDC-220-3E1 Solenoid Valve, 3/2-Way Single Solenoid (Body Ported)

SKU MVDC-220-3E1-AC220
by Mindman
$33.76 - $37.64
$33.76
$33.76 - $37.64
$33.76
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVDC-220 series 3/2-way single solenoid solenoid valve (body ported).

Select the coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Ordering code format: MVDC-220-3E1-[Voltage]-[Connection]-[Thread]

Specifications

Body width 22 mm
Bore No. 6A
Port size 1/8
No. of port 2, 3
No. of position 2
Medium Air
Operating pressure range 0~0.7 MPa
Flow 44 l/min
Effective orifice 0.8 mm²
Response time 20 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight 155 g
Remark * Power saving covert time 100ms.
Series Mindman MVDC-220
