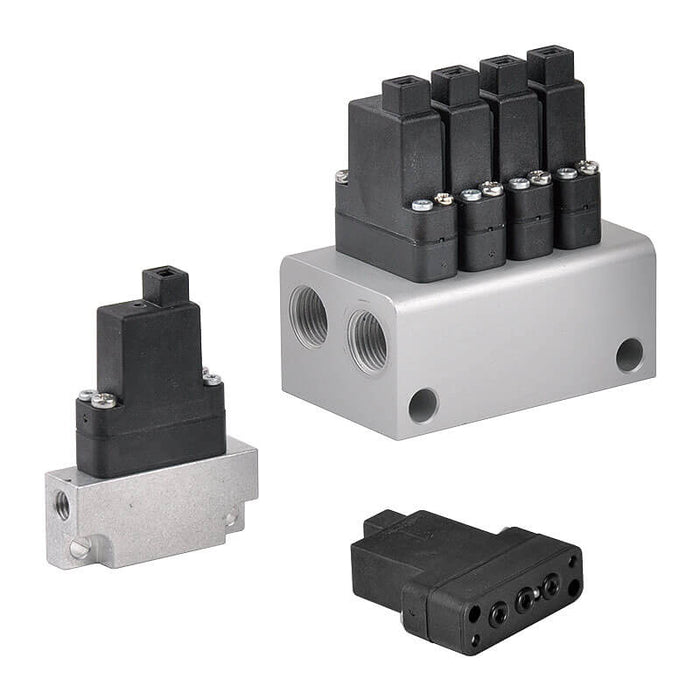

Mindman MVDA-80-3B1 Single Base

Specifications

Body width 8 mm
No. of port 2, 3
No. of position 2
Medium Dry air, inert gas
Operating pressure range 0~1.2 MPa, 0~0.8 MPa
Flow rate (Nl/min) 25 ±10%, 28 ±10%
Response time ON: 0.7~2.0 ±1 ms; OFF: 0.5~1.0 ±1 ms
Operating fluid temp. –10~+50°C
Ambient temperature –10~+50°C
Storage temperature –10~+50°C
Voltage Speed-up: DC24V, Hold: DC5V, DC12V
Power consumption 0.8 W, 0.5 W (Hold), 1.2W, 1.44W
Filter element 40 μm
Lubrication No required
Max. operating frequency 500 Hz (at 250Hz with driver board), 200Hz, 280Hz
IP protection class IP52
Weight 8 g
Series Mindman MVDA-80
