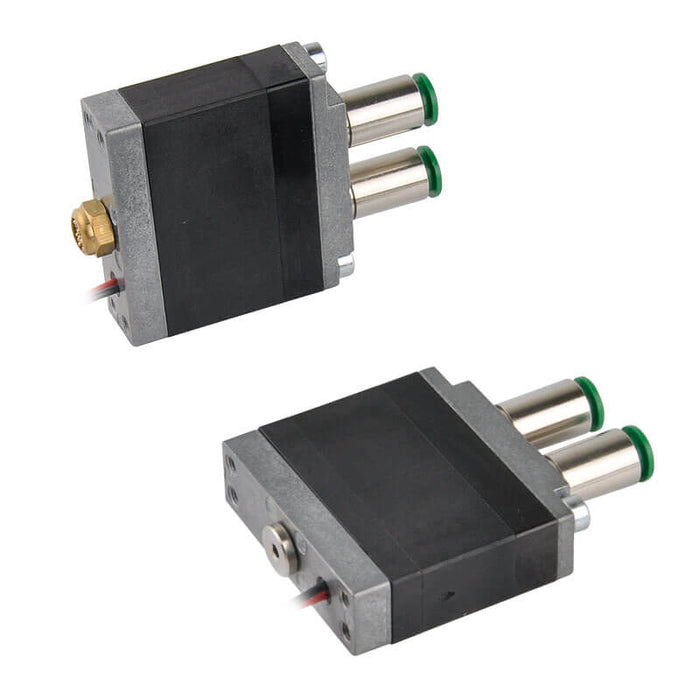

Mindman MVDA-120 series

Mindman MVDA-120-2E1-NC-KK-S Direct Acting Compact Solenoid Valve

SKU MVDA-120-2E1-NC-KK-S
by Mindman
$312.13 - $312.13
$312.13
$312.13 - $312.13
$312.13
Availability:
In stock

Mindman MVDA direct acting compact solenoid valve. KK = DC24V speed-up / DC5V hold; C = without driver board, S = with driver board.

Specifications

Body width 12 mm
No. of port 2, 3
No. of position 2
Medium Non-lubrifcated dry air, Neutral gases
Operating fluid temp. –10~+50°C
Operating pressure range 0~0.8 MPa, 0.4~0.8 MPa
Flow rate 100 Nl/min, 80 Nl/min
Response time ON: < 2 ms, < 5 ms; OFF: < 2 ms, < 1.3 ms
Ambient temperature –10~+50°C
Filtration rating min. 40 µm
Voltage Speed-up: DC24V, Hold: DC5V, DC12V
Power consumption 0.8 W (Hold), 1W
Max. operating frequency 300 Hz (at 250Hz with driver board), 150Hz
IP protection class IP62
Weight 35 g, 70g
Series Mindman MVDA-120
