Mindman MVBAT series

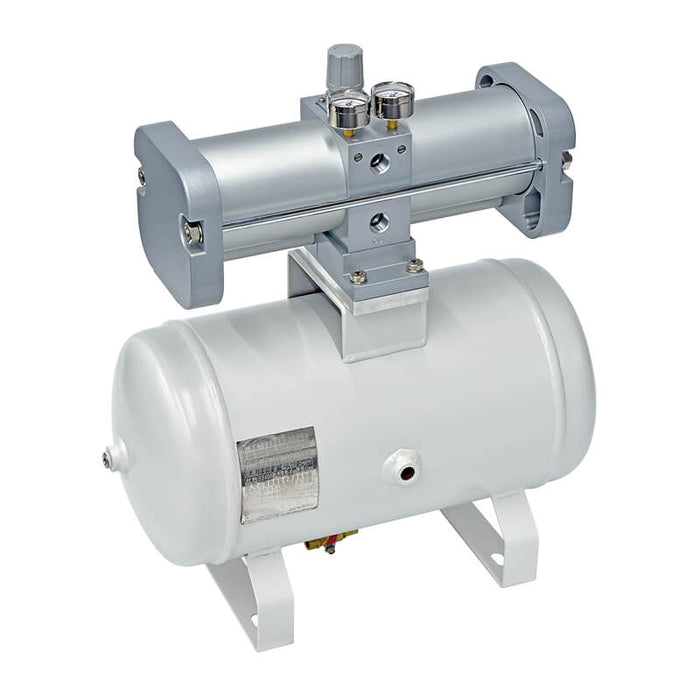

Mindman MVBAT22H43 Booster Regulator with Tank

SKU MVBAT22H43-NPT
by Mindman
$3,493.87 - $3,777.90
$3,493.87
$3,493.87 - $3,777.90
$3,493.87
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVBAT22H43 air booster regulator.

Select the options below; the full Mindman ordering code is shown as the SKU (MVBAT22H43-[option]-[thread]).

Price is the Mindman list price.

Specifications

Specification 1021, 2021, 2121, 2141, 22H43
Medium Compressed air
Operating pressure range 0.2~1 MPa, 0.2~1.6 MPa
Supply pressure range 0.1~1 MPa
Ambient temperature +2~+50°C (No freezing)
Attachment (※3) Pressure gauge: PG-25, PG-40W, PG-40W-20K
Option (※3) A: Precision filter regulator: A-BA-03, A-BA-04; S: Silencer: MSLT-03, MSLT-04; V: Drain valve & piping joint: V-BA-02
Weight (Booster regulator with air tank) 12~34 kg
Applicable model MVBA-2100, MVBA-4100, MVBA-4300
IN, OUT, EXH port Rc3/8, Rc1/2
Applicable model MVBAT10A, MVBAT20A, MVBAT21B, MVBAT21C, MVBAT22HC
OUT port size Rc3/8, Rc1/2
IN port size No port thread provided
Safety valve sqare port Rc3/8
Drain valve port Rc1/4
Max. operating pressure 2 MPa
Proof pressure 1.6 ~ 3.3 MPa
Ambient & operating fluid temperature 0~+75°C
Volume 10, 20 L
Material Carbon steel
Painting Exterior: Cool gray-white baked paint, Interior: No anti-rust coating
Weight 8~24.5 kg
Remark ※1. When selecting option A (precision filter regulator), the booster will use Rc thread specification exclusively. Refer to "MVBA series spec.; ※2. Not recommended for use solely as an air tank. Only Rc threading is available. For those opting for G or NPT threading, one male-to-female OUT port adapter (1 pc) is included as needed; ※3. Drain valves and precision filter regulator are assembled for shipment. Attachment and optional accessories are included with the shipment separately and are not pre-assembled.
Series Mindman MVBAT
